B58621H5810A029
ActiveEPCOS - TDK Electronics

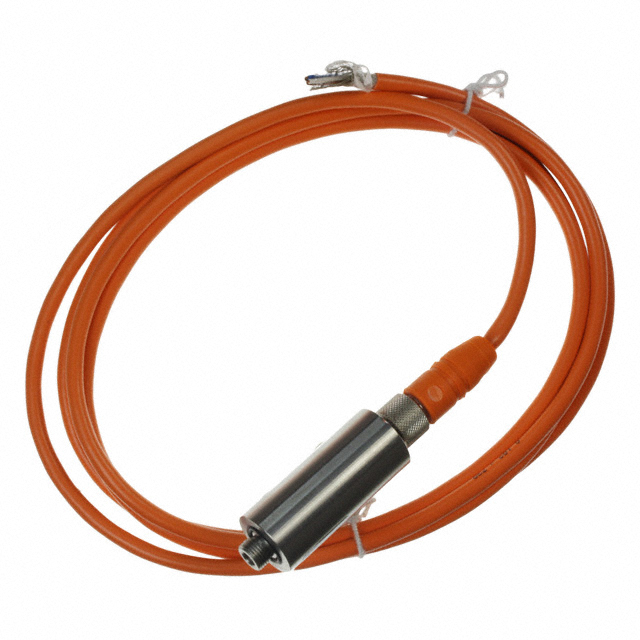

PRESSURE SENSOR GAUGE 10000MBAR
B58621H5810A029
ActiveEPCOS - TDK Electronics
PRESSURE SENSOR GAUGE 10000MBAR
Description
General part information
B58621H5810A029
PRESSURE SENSOR GAUGE 10000MBAR
Technical Specifications
Parameters and characteristics for this part
| Specification | B58621H5810A029 |
|---|---|
| Accuracy | 2 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 217.56 PSI |
| Operating Pressure | 145.04 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.125 " |
| Port Feature | BSPP |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Cable/Wire Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 7.5 V |
