CDR14BG101EKUS
ObsoleteKYOCERA AVX
CAP CER 100PF 500V BG 1111
CDR14BG101EKUS
ObsoleteKYOCERA AVX
CAP CER 100PF 500V BG 1111
Description
General part information
CDR14BG101EKUS

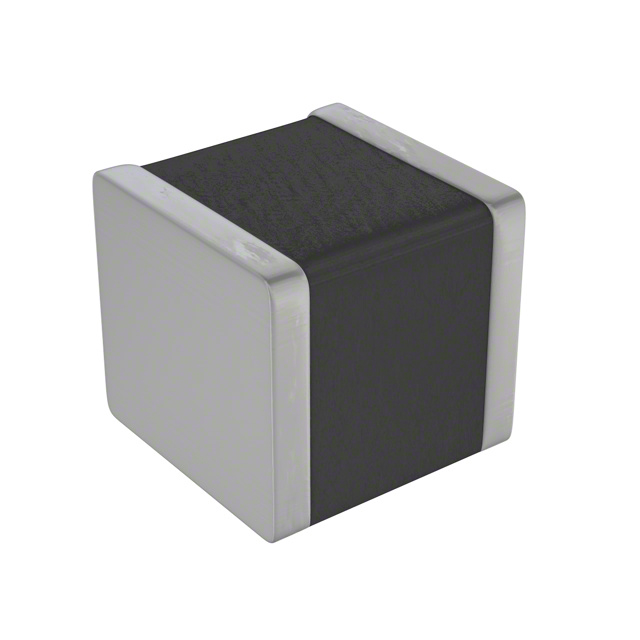

100 pF ±10% 500V Ceramic Capacitor BG 1111 (2828 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR14BG101EKUS |
|---|---|
| Applications | High Reliability |
| Capacitance | 100 pF |
| Failure Rate (Percent) | 0.001 % |
| Failure Rate Rating | S |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1111 (2828 Metric) |
| Package Name | 1111 |
| Pad Count | 0 PC Pad |
| Size / Dimension Length | 0.11 in |
| Size / Dimension Width | 0.11 in |
| Temperature Coefficient | BG |
| Thickness (Max) | 0.102 in |
| Tolerance | 10 % |
| Voltage - Rated | 500 V |
