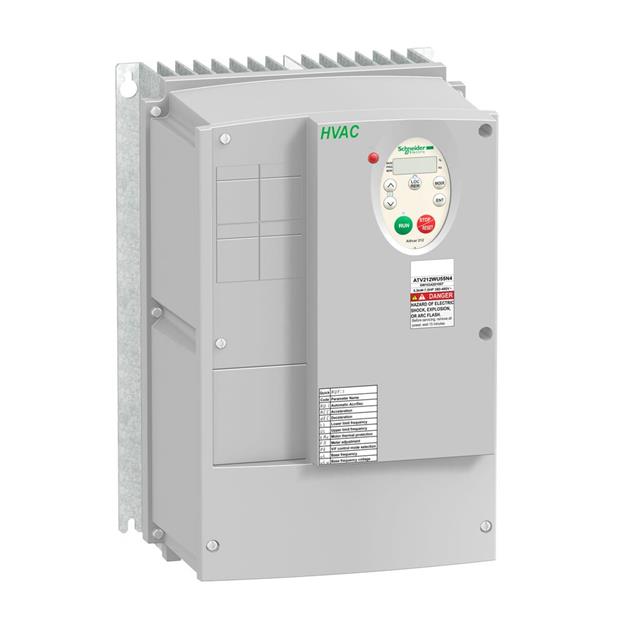

ATV212WU55N4
ActiveSCHNEIDER ELECTRIC
VARIABLE SPEED DRIVE, ALTIVAR 212 SERIES, ASYNCHRONOUS, THREE PHASE, 5.5 KW, 380 TO 480 VAC
ATV212WU55N4
ActiveSCHNEIDER ELECTRIC
VARIABLE SPEED DRIVE, ALTIVAR 212 SERIES, ASYNCHRONOUS, THREE PHASE, 5.5 KW, 380 TO 480 VAC
Description
General part information
ATV212WU55N4
VARIABLE SPEED DRIVE, ALTIVAR 212 SERIES, ASYNCHRONOUS, THREE PHASE, 5.5 KW, 380 TO 480 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV212WU55N4 |
|---|---|
| Current - Output | 12 A |
| Interface | RS-485 |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 380 V |
| Voltage - Supply (Maximum) | 528 VAC |
| Voltage - Supply (Minimum) | 323 V |
| Wattage - Load | 370 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
