130491
ActiveTE Connectivity AMP Connectors
TERMINAL, RING TONGUE, 1/4", 10AWG/YEL ROHS COMPLIANT: YES
130491
ActiveTE Connectivity AMP Connectors
TERMINAL, RING TONGUE, 1/4", 10AWG/YEL ROHS COMPLIANT: YES
Description
General part information
130491

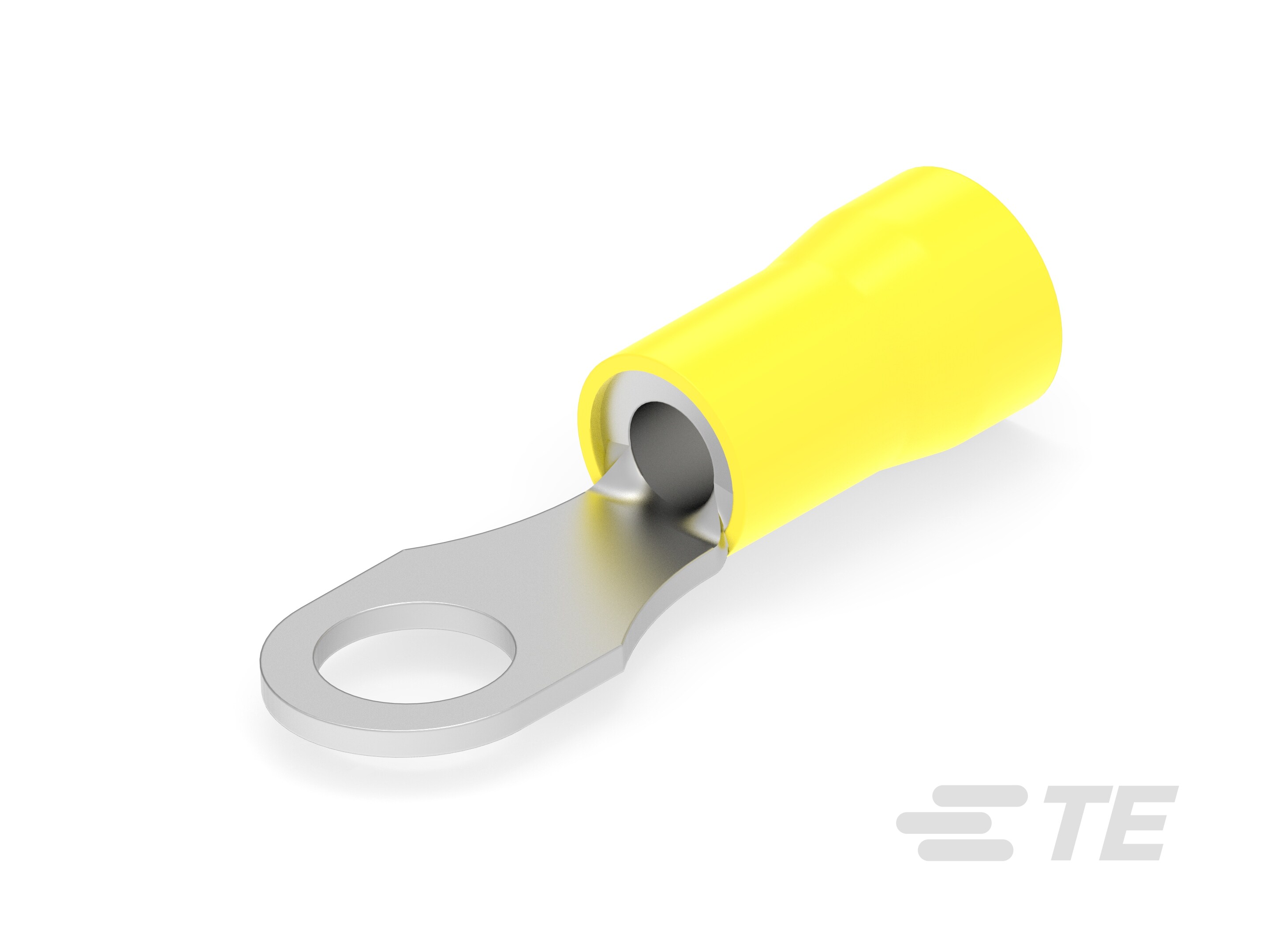

Closed Ring Tongue Terminal, 12 – 10 AWG, M6 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 130491 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.264 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M6 Stud, M6 |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.374 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
