20-101-0507
ObsoleteDigi International

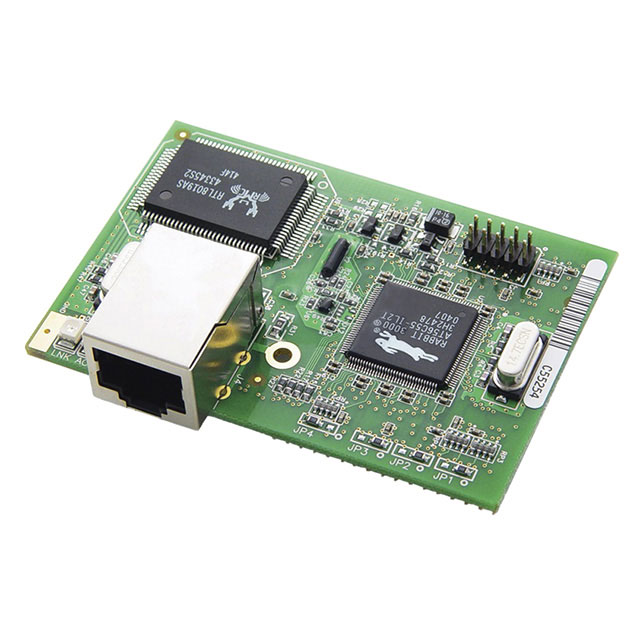

SYSTEM-ON-MODULES - SOM RCM3000 RABBITCORE MODULE
20-101-0507
ObsoleteDigi International
SYSTEM-ON-MODULES - SOM RCM3000 RABBITCORE MODULE
Description
General part information
20-101-0507
RabbitCore RCM3000 Embedded Module Rabbit 3000 30MHz 512KB 512KB
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-0507 |
|---|---|
| Connector Pins per Row | 17 |
| Connector Rows | 2 |
| Connector Type | 2 IDC Headers, 2 IDC Headers 2x17 |
| Core Processor | Rabbit 3000 |
| Flash Size | 512 KB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Size | 512 KB |
| Size / Dimension Length | 1.85 in |
| Size / Dimension Width | 2.73 in |
| Speed | 30 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
