Description
General part information

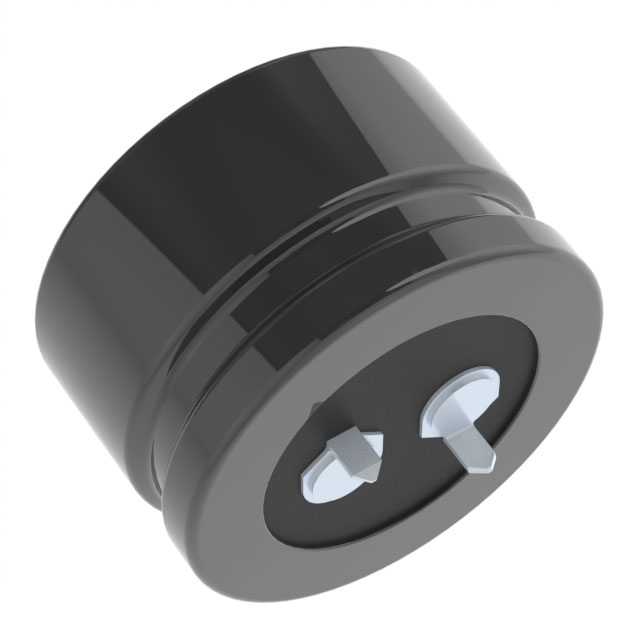

EKMM421VNN121MA20T
120 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2.763Ohm @ 120Hz 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMM421VNN121MA20T |
|---|---|
| Applications | General Purpose |
| Capacitance | 120 µF |
| ESR (Equivalent Series Resistance) | 2.763 Ohm |
| Height - Seated (Max) | 0.866 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 670 mA, 958.1 mA |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 420 V |
