97-3106A-32-6P

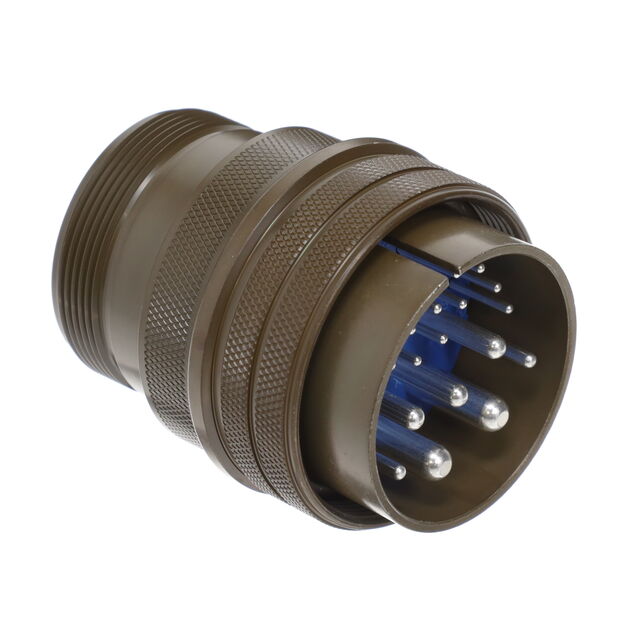

23 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3106A-32-6P |
|---|---|
| Applications | Automotive, Industrial |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Color | Olive Drab |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating Options | 23A, 46A, 13A, 80A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Diallyl Phthalate, DAP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 23 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 32 mm |
| Shell Size - Insert Width | 6 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 500 VAC |
| Voltage Rating (DC) | 700 VDC |
