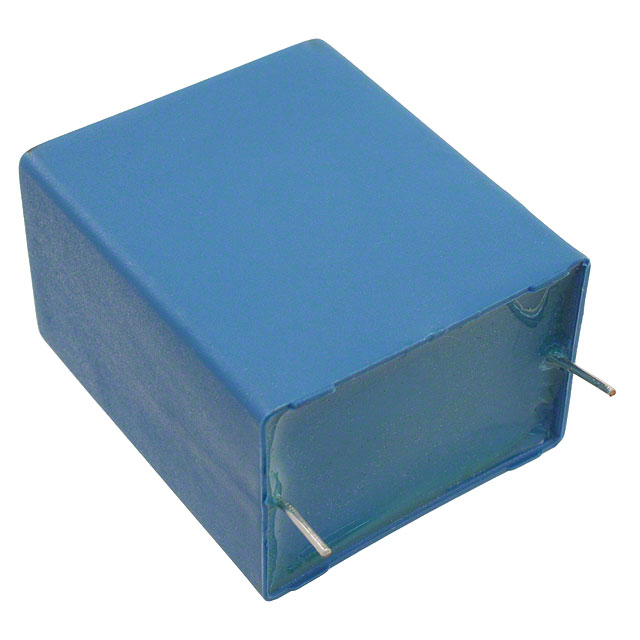

B32714H5106K000
ActiveEPCOS - TDK Electronics
MKP DC FILTERING - 500VDC, 10UF
B32714H5106K000
ActiveEPCOS - TDK Electronics
MKP DC FILTERING - 500VDC, 10UF
Description
General part information
B32714H5106K000
10 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32714H5106K000 |
|---|---|
| Applications | Automotive |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 6.1 mOhm |
| Features | Long Life |
| Height - Seated (Max) | 0.965 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.591 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 500 V |
