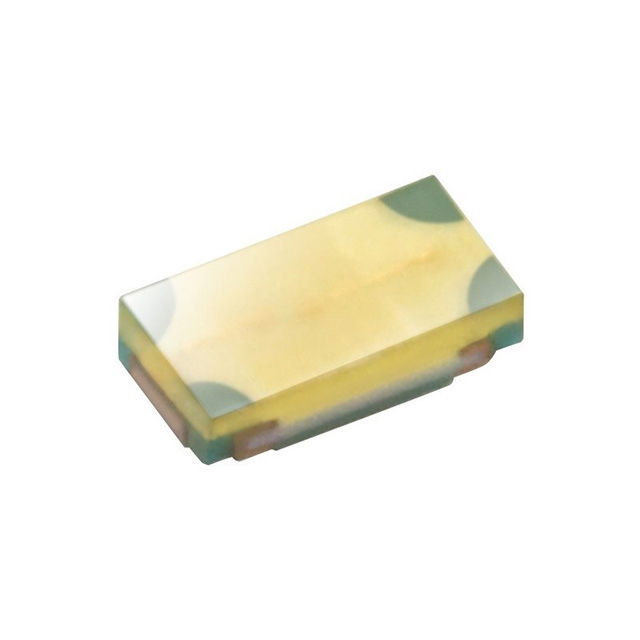

16-219A/T2D-AR2T1QY/3T
ActiveEverlight Electronics Co Ltd
LED WHITE DIFFUSED 2SMD
16-219A/T2D-AR2T1QY/3T
ActiveEverlight Electronics Co Ltd
LED WHITE DIFFUSED 2SMD
Description
General part information
16-219A/T2D-AR2T1QY/3T
White LED Indication - Discrete 2.95V 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 16-219A/T2D-AR2T1QY/3T |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) | 0.25 mm |
| Lens Color | Yellow |
| Lens Length | 1 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Lens Width | 0.5 mm |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 2-SMD |
| Size / Dimension Length | 1 mm |
| Size / Dimension Width | 0.5 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
