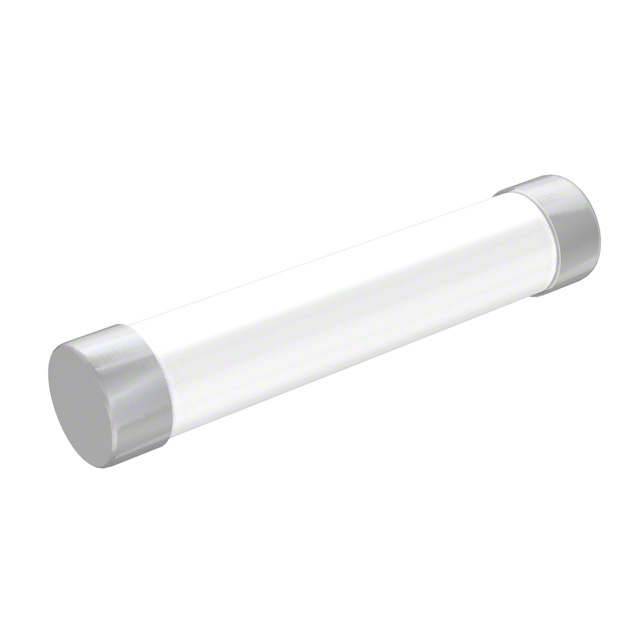

FWH-004A6F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 4A 500VAC/600VDC
FWH-004A6F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 4A 500VAC/600VDC
Description
General part information
FWH-004A6F
4A 500 VAC 600 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWH-004A6F |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 50 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 4 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Size / Dimension Diameter | 0.252 in |
| Size / Dimension Length | 1.252 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 600 V |
