LCCA30473-FT3
ActivePasternack
SMA M TO N M USING LC141TBJ, 3 F
LCCA30473-FT3
ActivePasternack
SMA M TO N M USING LC141TBJ, 3 F
Description
General part information
LCCA30473-FT3

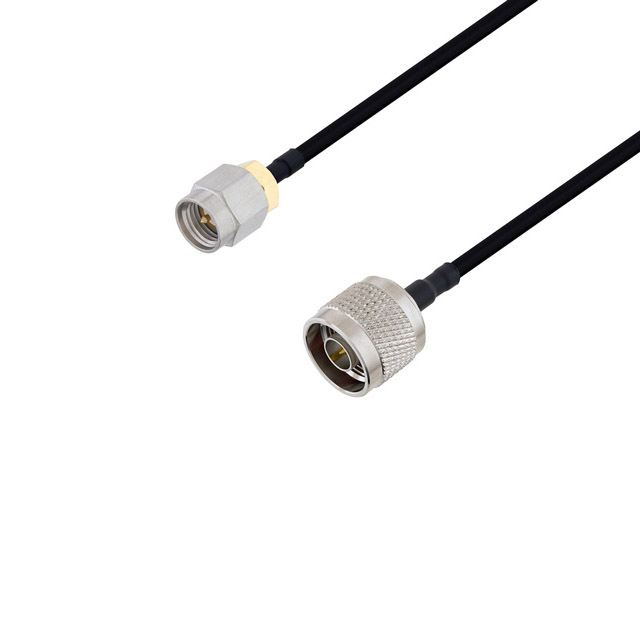

Cable Assembly Coaxial SMA to N-Type LC141TBJ 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30473-FT3 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
