VPP26K1HD75TX
ActiveSwitchcraft Inc.

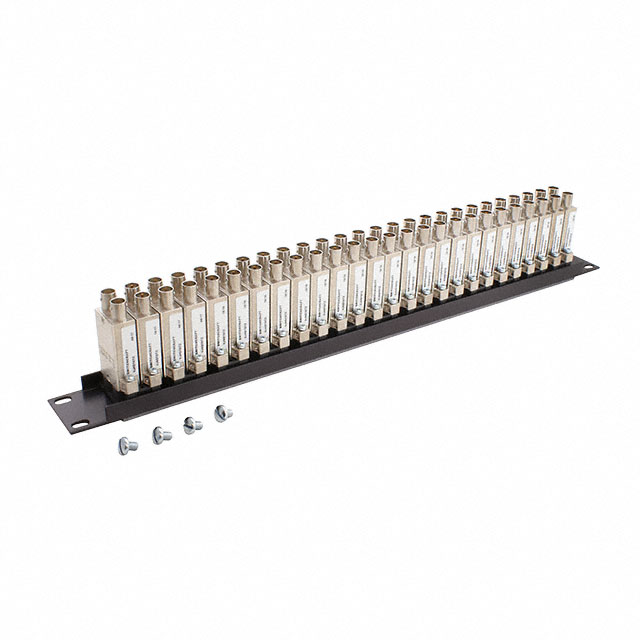

PATCHBAY 26JACK HD TERMINATED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VPP26K1HD75TX
ActiveSwitchcraft Inc.
PATCHBAY 26JACK HD TERMINATED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VPP26K1HD75TX | VPP26K Series |
|---|---|---|
| Connector Type | 75 Ohm | 75 Ohm |
| Connector Type | HD Jack | HD Jack |
| Number of Positions | 26 | 26 |
| Number of Rows | 2 | 2 |
| Type | Video Pass Through Panel | Video Pass Through Panel |
VPP26K Series
PATCH PANELS VIDEO PBAY NON-TERM, ROHS
| Part | Connector Type | Number of Rows | Type | Number of Positions | Connector Type |
|---|---|---|---|---|---|
Switchcraft Inc. VPP26K3HDNTX | HD Jack | 2 | Video Pass Through Panel | 26 | |
Switchcraft Inc. VPP26K1HD75TX | HD Jack | 2 | Video Pass Through Panel | 26 | 75 Ohm |
Switchcraft Inc. VPP26K1HDNTX | HD Jack | 2 | Video Pass Through Panel | 26 | |
Switchcraft Inc. VPP26K3HD75TX | HD Jack | 2 | Video Pass Through Panel | 26 | 75 Ohm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1675.00 | |
Description
General part information
VPP26K Series
PATCHBAY 26JACK HD TERMINATED
Documents
Technical documentation and resources
