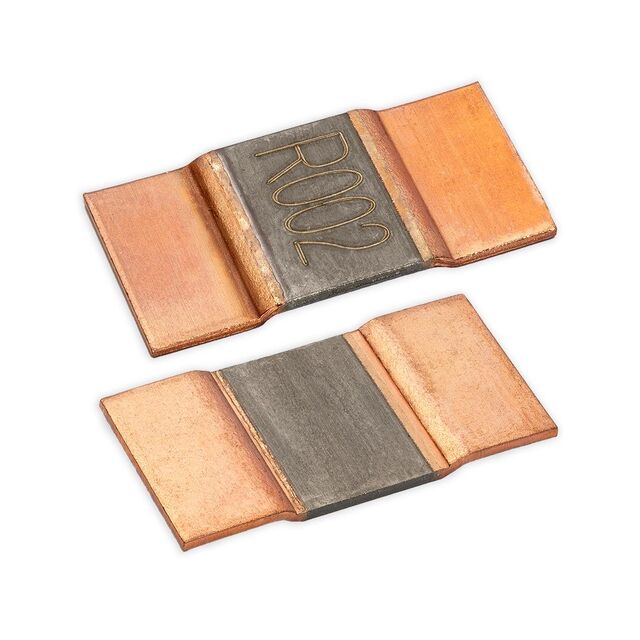

D1CSA3921M0M50J-T3
ActiveThin Film Technology Corp.
RES 0.0005 OHM 5% 9W 3921
D1CSA3921M0M50J-T3
ActiveThin Film Technology Corp.
RES 0.0005 OHM 5% 9W 3921
Description
General part information
D1CSA3921M0M50J-T3
0.5 mOhms ±5% 9W Chip Resistor Nonstandard Anti-Sulfur, Current Sense, Moisture Resistant, Safety Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | D1CSA3921M0M50J-T3 |
|---|---|
| Composition | Metal Element |
| Features | Safety, Anti-Sulfur, Current Sense, Moisture Resistant |
| Height - Seated (Max) | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Name | 3921 |
| Power (Watts) | 9 W |
| Resistance | 0.5 mOhms |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.205 in |
| Temperature Coefficient | 70 ppm/°C |
| Tolerance | 5 % |
