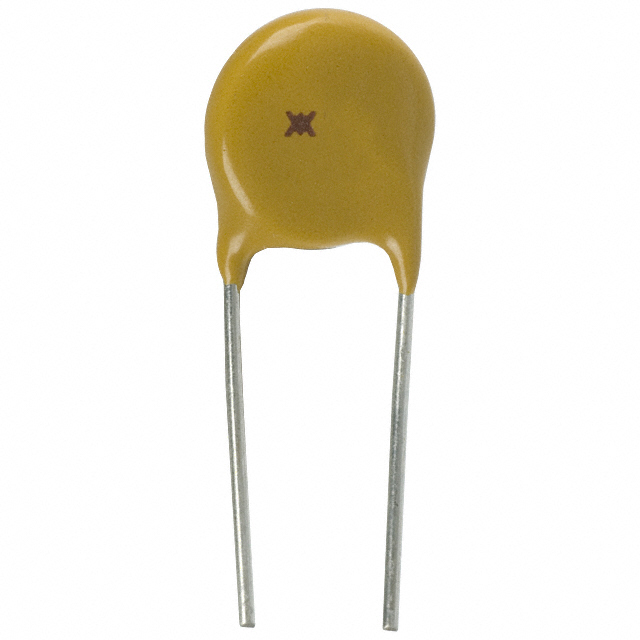

LVR005S-1
ObsoleteLITTELFUSE
PTC RESET FUSE 240V 50MA RADIAL
LVR005S-1
ObsoleteLITTELFUSE
PTC RESET FUSE 240V 50MA RADIAL
Description
General part information
LVR005S-1
Polymeric PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | LVR005S-1 |
|---|---|
| Approval Agency | CSA, TUV, UL, CQC |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Max | 1 A |
| Current - Trip (It) | 120 mA |
| Height - Seated (Max) | 0.43 in |
| Lead Spacing | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 18.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 65 Ohms |
| Size / Dimension Diameter | 0.327 in |
| Size / Dimension Thickness | 0.15 in |
| Time to Trip | 10 s |
| Type | Polymeric |
| Voltage - Max | 240 V |
| Voltage - Max (Int) | 265 V |
