5280-4PG-530

Active

Conxall/Switchcraft

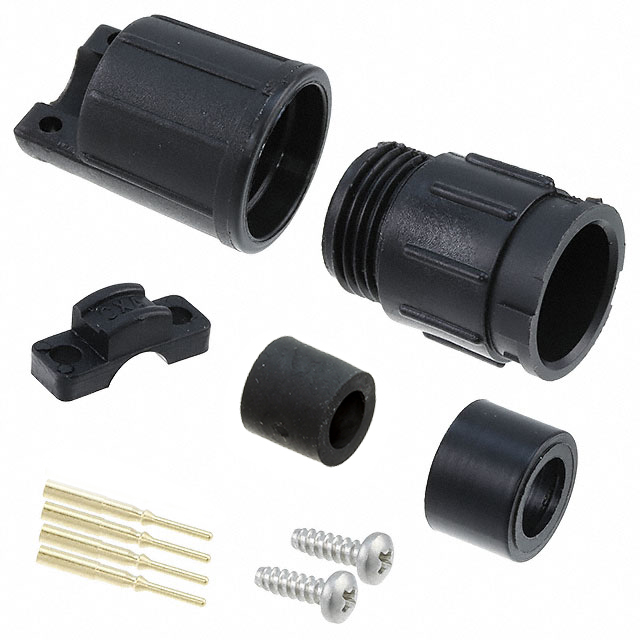

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5280-4PG-530

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5280-4PG-530	5280-4PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5280-4PG Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Ingress Protection	Termination	Fastening Type	Number of Positions	Primary Material	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Contact Material	Voltage Rating	Mounting Type	Orientation	Backshell Material, Plating	Connector Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5280-4PG-330	-40 °C	115 °C	Unshielded	Backshell	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	7.62 mm	0.32 in	8.13 mm	0.3 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black
Conxall/Switchcraft 5280-4PG-321	-40 °C	115 °C	Unshielded	Backshell	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	5.33 mm	0.23 in		0.21 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black	5.84 mm
Conxall/Switchcraft 5280-4PG-530	-40 °C	115 °C	Unshielded	Backshell, Cable Clamp	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	7.62 mm	0.32 in	8.13 mm	0.3 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black
Conxall/Switchcraft 5280-4PG-324	-40 °C	115 °C	Unshielded	Backshell	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	6.1 mm	0.27 in		0.24 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black	6.86 mm
Conxall/Switchcraft 5280-4PG-528	-40 °C	115 °C	Unshielded	Backshell, Cable Clamp	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	7.11 mm	0.29 in		0.28 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black	7.37 mm
Conxall/Switchcraft 5280-4PG-328	-40 °C	115 °C	Unshielded	Backshell	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold	7.11 mm	0.29 in		0.28 in	5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black	7.37 mm
Conxall/Switchcraft 5280-4PG-318	-40 °C	115 °C	Unshielded	Backshell	Weathertight	Crimp	Bayonet Lock	4	Plastic	Gold					5.6 A	Brass	600 V	Free Hanging (In-Line)	Keyed	Nylon, Polyamide (PA)	Male Pins, Receptacle	Black		4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.58

Description

General part information

5280-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources
