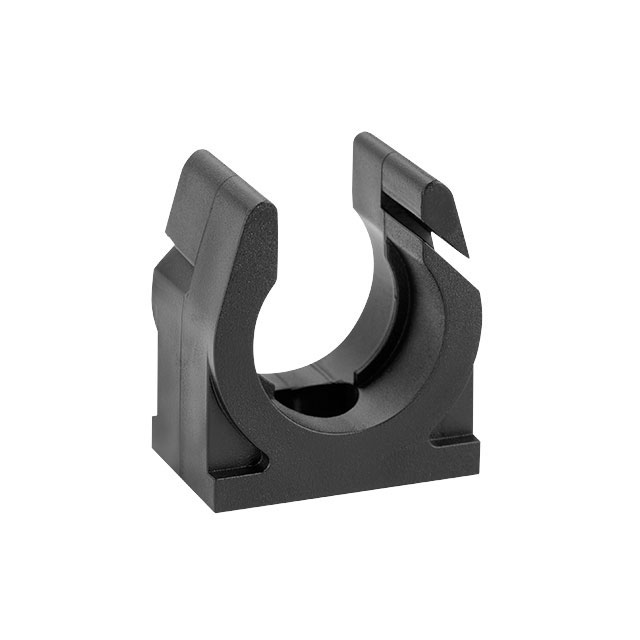

2CNPA-37G.10

Active

Fraenkische USA, LP

FIPSPLIT, CONDUIT SUPPORT,NW37,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2CNPA-37G.10

Active

Fraenkische USA, LP

FIPSPLIT, CONDUIT SUPPORT,NW37,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2CNPA Series

Cable Clamp, Conduit Gray Fastener 1.646" (41.80mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2CNPA-37G.10	2CNPA Series

Color	Gray	Gray, Black
Height	-	1.693 in
Height	-	43 mm
Height [z]	2.228 in	0.689 - 3.937 "
Height [z]	56.59 mm	17.5 - 100 mm
Length	-	0.728 - 1.89 in
Length	-	18.5 - 48 mm
Length [x]	56 mm	0.1 - 56 mm
Length [x]	2.205 "	0.591 - 3.937 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Fastener	Fastener
Opening Size	41.8 mm	18.7 - 41.8 mm
Opening Size	-	13.5 - 79.8 mm
Opening Size	-	0.531 - 3.142 in
Opening Size	-	1.39 in
Opening Size	-	35.31 mm
Opening Size	-	9.7 mm
Opening Size	-	0.85 in
Opening Size [z]	1.646 in	0.382 - 1.646 in
Screw Size	M6	M6, M3, M5
Type	Clamp, Conduit	Clamp, Conduit
Width [y]	20 mm	20 mm
Width [y]	0.787 in	0.787 in

2CNPA Series

FIPSPLIT, CONDUIT SUPPORT,NW20,

Part	Material Flammability Rating	Material	Screw Size	Type	Width [y]	Width [y]	Height [z]	Height [z]	Mounting Type	Opening Size [custom]	Opening Size [custom]	Length [x]	Length [x]	Color	Length	Length	Opening Size [x]	Opening Size [x]	Height [diameter]	Height [diameter]	Opening Size [z]	Opening Size [z]	Opening Size	Opening Size [diameter]
Fraenkische USA, LP 2CNPA-20G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in	1.496 "	38 mm	Fastener	26 mm	1.024 in	1.378 in	35 mm	Gray
Fraenkische USA, LP 2CNPA-11B.10		Polyamide (PA66), Nylon 6/6	M3	Clamp, Conduit	20 mm	0.787 in			Fastener	16 mm	0.63 in			Black	0.827 in	21 mm
Fraenkische USA, LP 2CNPA-29G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in	1.988 "	50.5 mm	Fastener					Gray	1.89 "	48 mm	1.39 in	35.31 mm
Fraenkische USA, LP 2CNPA-10G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M5	Clamp, Conduit	20 mm	0.787 in	0.689 "	17.5 mm	Fastener	13.5 mm	0.531 in			Gray	0.728 "	18.5 mm
Fraenkische USA, LP 2CNPA-70B.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in	3.937 in	100 mm	Fastener	79.8 mm	3.142 in	3.937 in	0.1 m	Black
Fraenkische USA, LP 2CNPA-11G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M3	Clamp, Conduit	20 mm	0.787 in			Fastener	16 mm	0.63 in			Gray	0.827 in	21 mm
Fraenkische USA, LP 2CNPA-23G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in			Fastener	31.3 mm	1.232 in			Gray					1.693 in	43 mm
Fraenkische USA, LP 2CNPA-07B.10		Polyamide (PA66), Nylon 6/6	M3	Clamp, Conduit	20 mm	0.787 in	0.689 "	17.5 mm	Fastener			0.591 in	15 mm	Black							0.382 in	9.7 mm
Fraenkische USA, LP 2CNPA-16G.10	UL94 V-2	Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in	1.378 in	35 mm	Fastener			1.181 in	30 mm	Gray									21.6 mm	0.85 in
Fraenkische USA, LP 2CNPA-20B.10		Polyamide (PA66), Nylon 6/6	M6	Clamp, Conduit	20 mm	0.787 in	1.496 "	38 mm	Fastener	26 mm	1.024 in	1.378 in	35 mm	Black
