6162.0053
ObsoleteSCHURTER Inc.
PWR ENT RCPT IEC320-C14 PNL SLDR
6162.0053
ObsoleteSCHURTER Inc.
PWR ENT RCPT IEC320-C14 PNL SLDR
Description
General part information
6162.0053

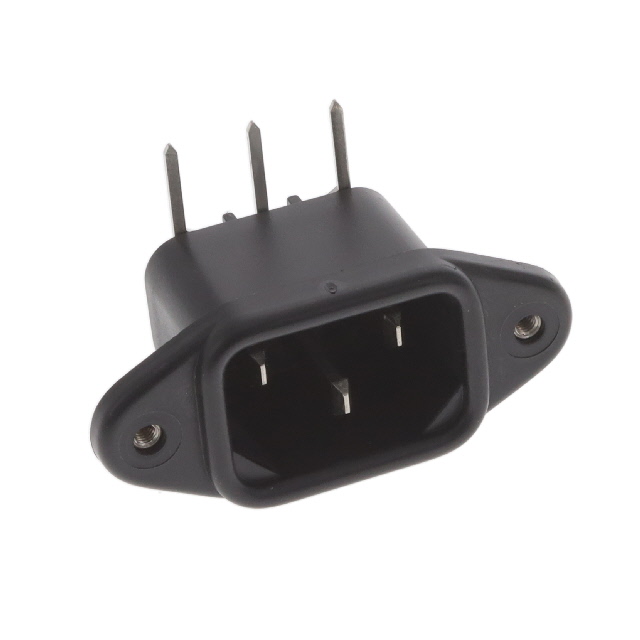

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 6162.0053 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | ENEC, cCSAus, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 27.3 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 19.5 mm |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
