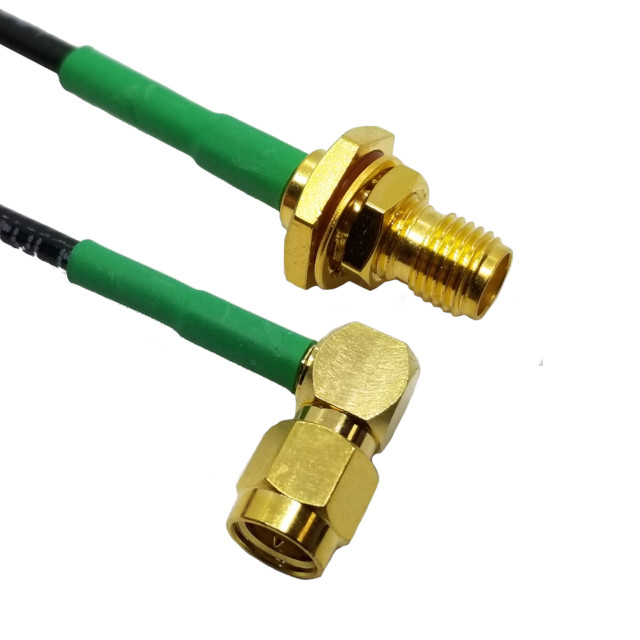

CBE-SAF3OGT-SALMGT-5IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA JACK TO PLUG 5"
CBE-SAF3OGT-SALMGT-5IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA JACK TO PLUG 5"
Description
General part information
CBE-SAF3OGT-SALMGT-5IN
Cable Assembly Coaxial SMA to SMA RG-174 5.000" (127.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBE-SAF3OGT-SALMGT-5IN |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 5 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
