Description
General part information

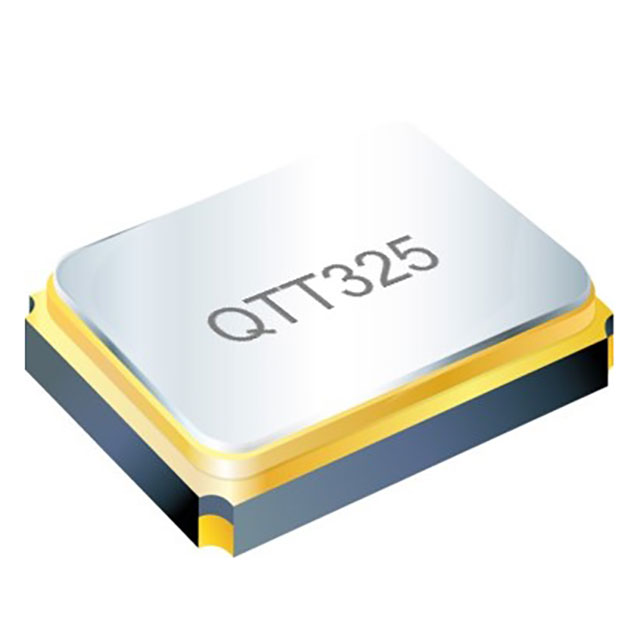

QTT325-16.3676MBG-T
16.3676 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | QTT325-16.3676MBG-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 16.3676 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-VDFN |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
