Description
General part information
COM-15337

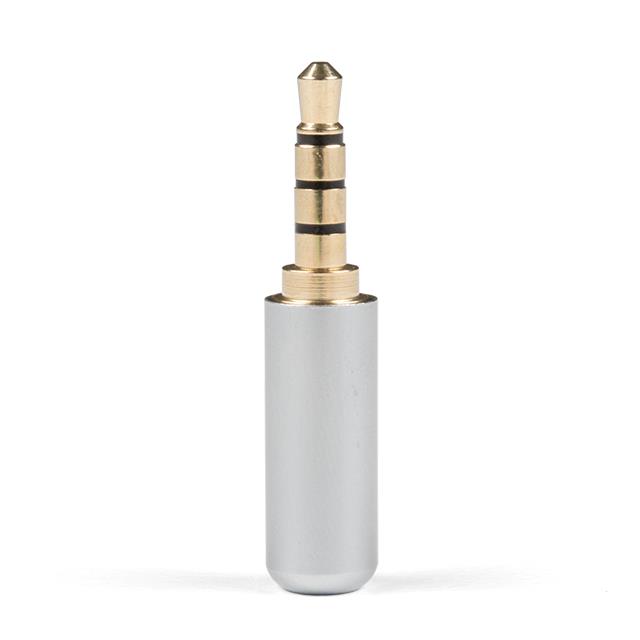

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-15337 |
|---|---|
| Actual Diameter | 0.138 in |
| Body Color | Silver |
| Connector Type | Phone Plug |
| Contact Material - Plating | Gold |
| Features | Cover |
| Gender | Male |
| Housing Material | Metal |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 4 Contacts |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder |
