B82498F3560J000
ActiveEPCOS - TDK Electronics
FIXED IND 56NH 600MA 140MOHM SMD
B82498F3560J000
ActiveEPCOS - TDK Electronics
FIXED IND 56NH 600MA 140MOHM SMD
Description
General part information
B82498F3560J000

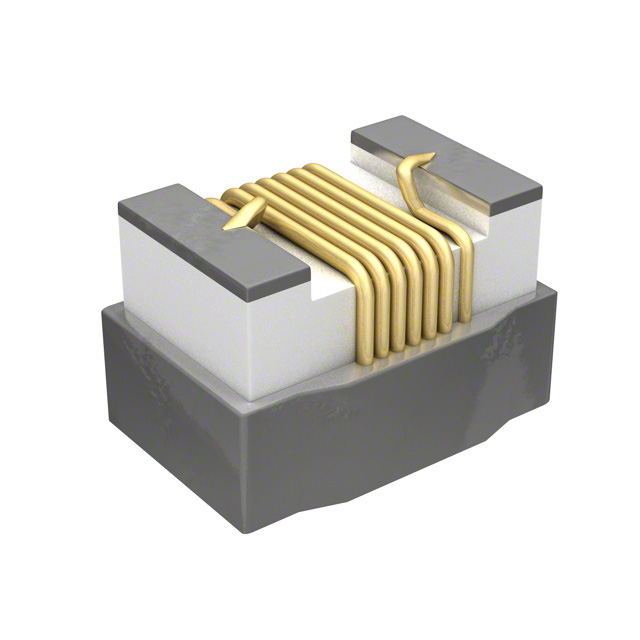

56 nH Unshielded Drum Core, Wirewound Inductor 600 mA 140mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82498F3560J000 |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Frequency - Self Resonant | 1.7 GHz |
| Height - Seated (Max) | 0.055 in |
| Inductance | 56 nH |
| Inductance Frequency - Test | 200 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.091 in |
| Size / Dimension Width | 0.067 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
