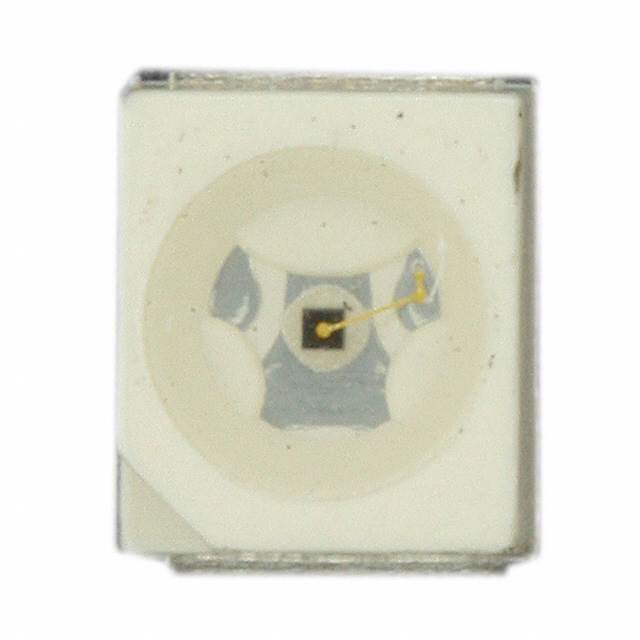

OP180
ObsoleteTT Electronics/BI
EMITTER IR 940NM 1A PLCC
OP180
ObsoleteTT Electronics/BI
EMITTER IR 940NM 1A PLCC
Description
General part information
OP180
Infrared (IR) Emitter 940nm 1.28V 1A 1.5mW/cm² @ 20mA 100° 2-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | OP180 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Top View |
| Package / Case | 2-PLCC |
| Radiant Intensity (Ie) Min | 1.5 mW/cm² |
| Type | Infrared (IR) |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 1.28 V |
| Wavelength | 940 nm |
