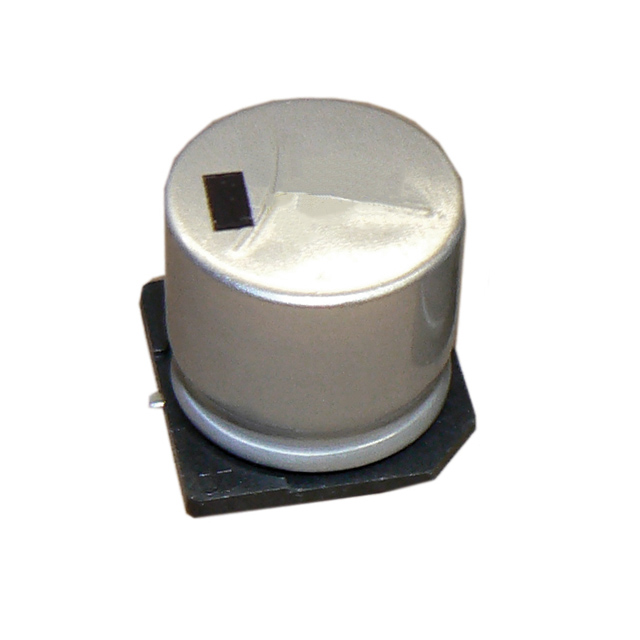

AFK108M06F24B-F
UnknownCornell Dubilier Knowles
CAP ALUM 1000UF 20% 6.3V SMD
AFK108M06F24B-F
UnknownCornell Dubilier Knowles
CAP ALUM 1000UF 20% 6.3V SMD
Description
General part information
AFK108M06F24B-F
1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160mOhm @ 100kHz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AFK108M06F24B-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 160 mOhm |
| Height - Seated (Max) | 0.413 in |
| Impedance | 0.16 Ohms |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 450 mA, 600 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
