3.96 EP HDR ASSY 3P VERT HT (TUBE PKG)-2306828-3

2306828-3

Active
TE Connectivity AMP Connectors

3.96 EP HDR ASSY 3P VERT HT (TUBE PKG)

Find alt
3.96 EP HDR ASSY 3P VERT HT (TUBE PKG)-2306828-3

2306828-3

Active
TE Connectivity AMP Connectors

3.96 EP HDR ASSY 3P VERT HT (TUBE PKG)

Find alt

Description

General part information

2306828-3

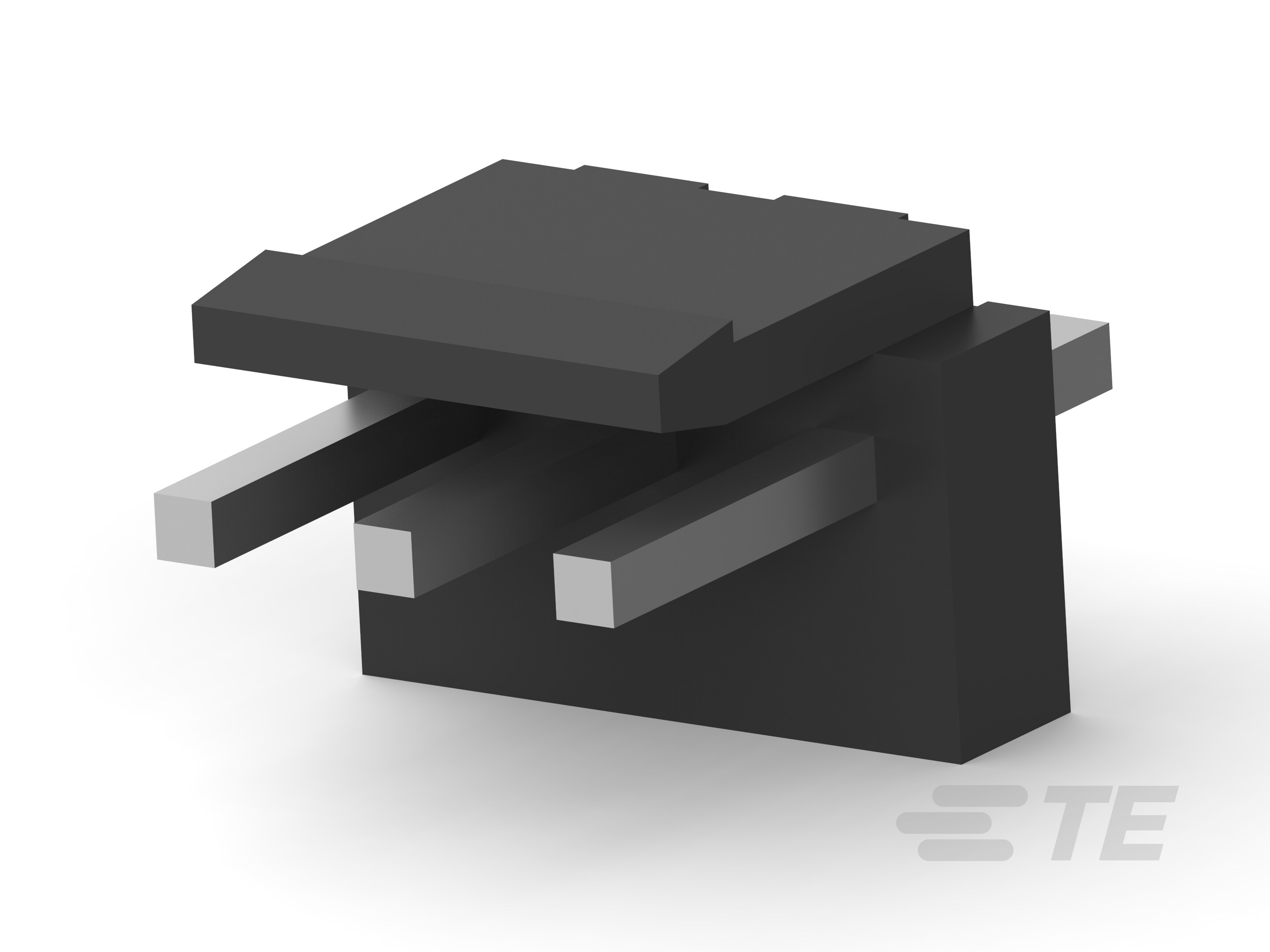

PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder

Technical Specifications

Parameters and characteristics for this part

Specification2306828-3
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8 A
Fastening TypeLocking Ramp
Insulation ColorBlack
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions3
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch - Mating0.156 in
ShroudingShrouded - 1 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating250 V
Voltage Rating (Type)DC
