MBA02040D7502DC100
ActiveVishay Dale
MBA/SMA 0204-25 0.5% C1 75K
MBA02040D7502DC100
ActiveVishay Dale
MBA/SMA 0204-25 0.5% C1 75K
Description
General part information
MBA02040D7502DC100

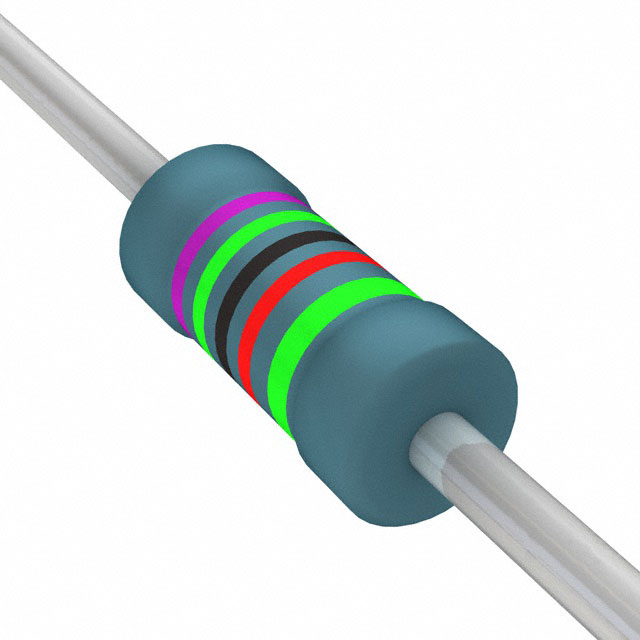

75 kOhms ±0.5% 0.4W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBA02040D7502DC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 75 kOhm |
| Size / Dimension Diameter | 0.063 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
