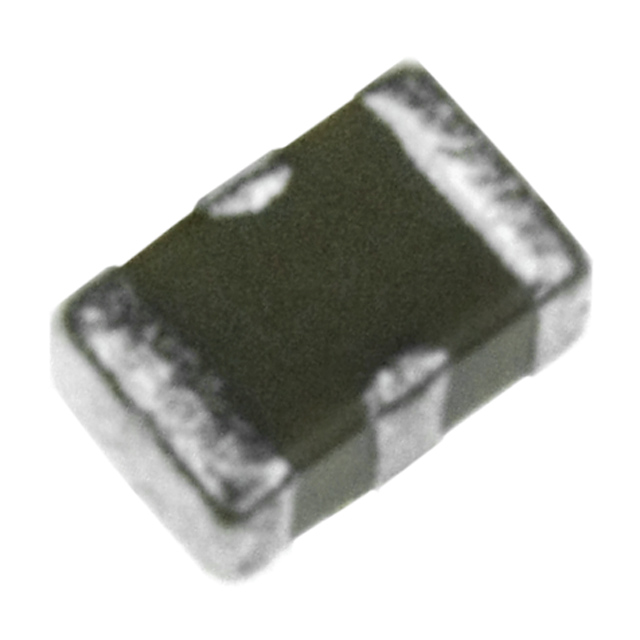

KNH21104-3AA
ObsoleteKYOCERA AVX
FILTER LC 0.1UF SMD
KNH21104-3AA
ObsoleteKYOCERA AVX
FILTER LC 0.1UF SMD
Description
General part information
KNH21104-3AA
LC EMI Filter Order Low Pass Channel C = 0.1µF 2 A 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | KNH21104-3AA |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.1 µF |
| Current | 2 A |
| ESD Protection | No |
| Height | 0.037 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 0805 (2012 Metric) |
| Resistance - Channel (Ohms) | 0.02 Ohm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Technology | LC |
| Type | Low Pass |
| Voltage - Rated | 25 VAC |
