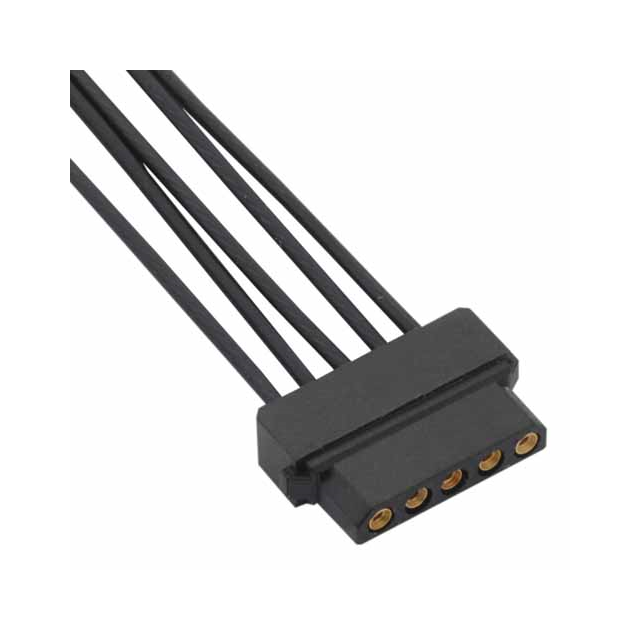

B5740-105-F-C-0

Active

Harwin Inc.

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Part	Number of Rows	Color	Wire Type	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. B5740-105-F-C-0	1	Black	Discrete	0.079 in	2 mm	Female Socket	Receptacle	Free Hanging (In-Line)	24 AWG	28 AWG	Locking Ramp	Crimp	Gold	0.3 Ám	11.8 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG

Technical documentation and resources
