Description
General part information
3140SBL6476

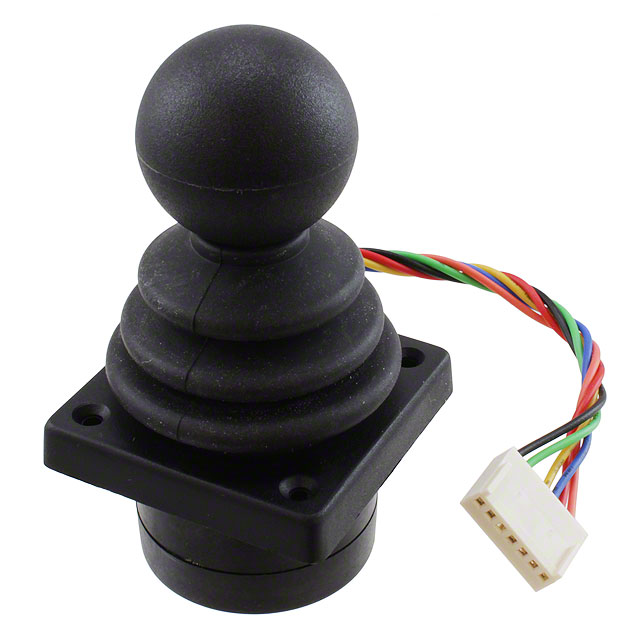

Joystick, 2 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | 3140SBL6476 |
|---|---|
| Actuator Type | Ball Tip |
| Features | Center Detect |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 130 gf |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Diameter | 39 mm |
| Panel Cutout Shape | Circular |
| Switch Function | 360° Directional |
| Termination Style | Wire Leads with Connector |
| Type | Joystick, 2 - Axis |
| Voltage - Supply | 5 VDC |
