OPR5925
ActiveTT Electronics/BI

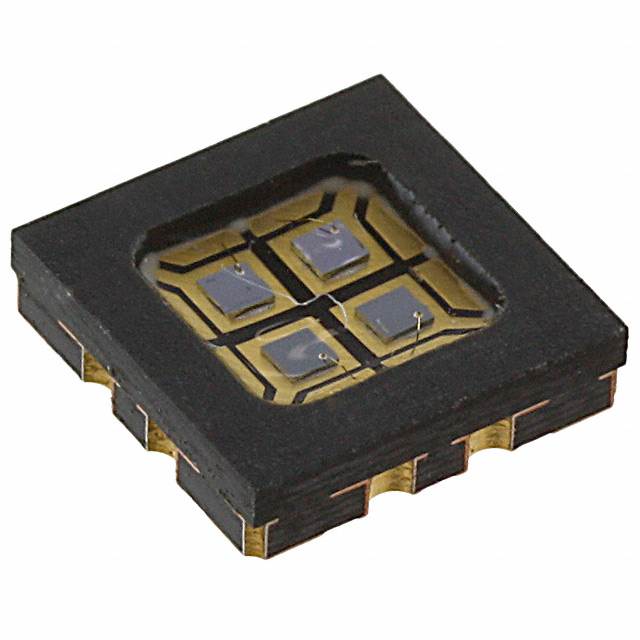

SENSOR PHOTODIODE 890NM SMD
OPR5925
ActiveTT Electronics/BI
SENSOR PHOTODIODE 890NM SMD
Description
General part information
OPR5925
Photodiode 890nm
Technical Specifications
Parameters and characteristics for this part
| Specification | OPR5925 |
|---|---|
| Active Area | 0.75 mm² |
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Responsivity | 0.45 A/W |
| Spectral Range (Maximum) | 1100 nm |
| Spectral Range (Minimum) | 400 nm |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
OPR5925 | Datasheet
Juarez ISO 9001
Optoelectronics One Pager
Sensors Product Selection Guide
Lead Free and RoHs Compliance for Juarez Site
RoHs Letter for Juarez Site
Supplier Quality Requirements Manual
REACH Compliance for Juarez Site
App Note 237: SMCC Microelectronic History and Handling Considerations
Custom Optoelectronic Assemblies Tri-Fold
Quality Manual for Juarez Site
Conflict Minerals Policy for Juarez Site
Declaration of Mineral Conflict Free Material for Juarez Site
Optoelectronics for Medical Tri-Fold
App Note 240: Surface Mount Chip Carriers
RoHs 3 Declaration Form for Juarez Site
