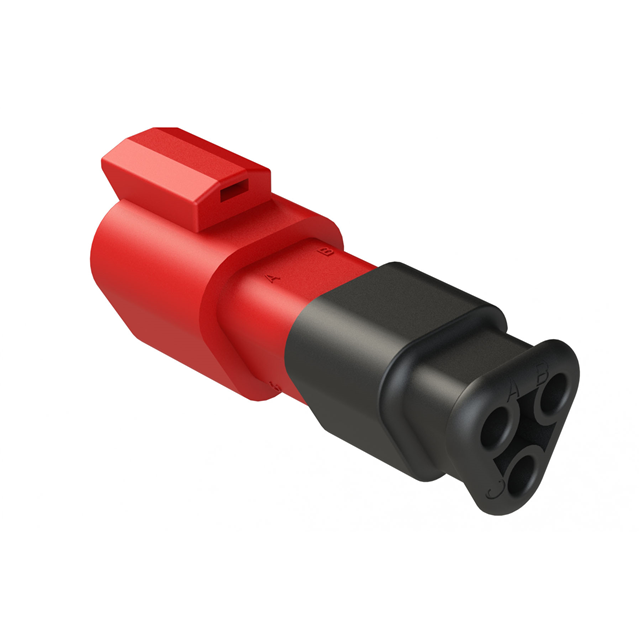

Specification	AT04-3P-SR01RED

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Strain Relief, Sealed, IP69K, IP68, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

AT04-3P Series

Part	Note	Connector Type	Fastening Type	Insulation Material	Number of Positions	Number of Rows	Contact Type	Contact Termination	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Color	Wire Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Cable Termination
McGill Microwave Systems AT04-3P-RED	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	Sealed	Red
McGill Microwave Systems AT04-3P-SR02WHT		Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	White
McGill Microwave Systems AT04-3P-RD01	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	Sealed	Gray
McGill Microwave Systems AT04-3P-SR02BLK	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	Strain Relief	Black
McGill Microwave Systems AT04-3P-CL06	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Panel Mount	125 °C	-55 °C	Mounting Flange Sealed	Black
McGill Microwave Systems AT04-3P-RY01	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	IP67	Gray
McGill Microwave Systems AT04-3P-SR01BLK	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	2	Male Pin	Crimp	Free Hanging (In-Line)	125 °C	-55 °C	Strain Relief	Black
McGill Microwave Systems AT04-3P-KIT01		Receptacle	Latch Holder		3		Male Pin		Free Hanging (In-Line)			Wedge Lock	Gray	Discrete	18 AWG	16 AWG	Crimp
McGill Microwave Systems AT04-3P-SB01	Contacts Not Included	Receptacle		Thermoplastic	3	1	Male Pin			125 °C	-55 °C
McGill Microwave Systems AT04-3P-PM05	Contacts Not Included	Receptacle	Latch Holder	Thermoplastic	3	1	Male Pin	Crimp	Panel Mount	125 °C	-55 °C	Mounting Flange Sealed	Black
