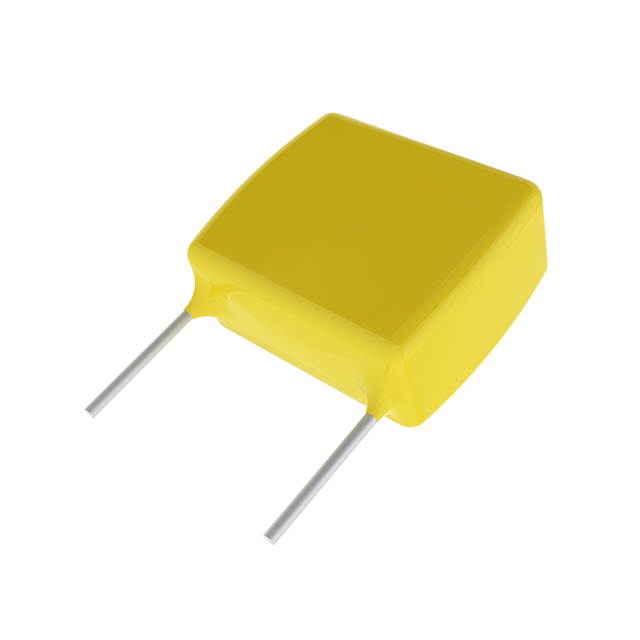

Specification	C322C185M5N5TA91707303

Applications	Automotive
Capacitance	1.8 µF
Features	High Temperature
Height - Seated (Max)	0.26 in
Lead Spacing	0.2 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	0.2 in
Size / Dimension Width	0.125 in
Temperature Coefficient	X8L
Tolerance	20 %
Voltage - Rated	50 V

C322C Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Applications	Lead Style	Features	Capacitance	Size / Dimension Length	Size / Dimension Width	Voltage - Rated	Temperature Coefficient	Height - Seated (Max)	Lead Spacing	Package / Case	Tolerance
KEMET C322C473J5G5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	47 nF	0.2 in	0.125 in	50 V	C0G NP0	0.26 in	0.2 in	Radial	5 %
KEMET C322C822JAG5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	8200 pF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	5 %
KEMET C322C123J3G5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	0.012 µF	0.2 in	0.125 in	25 VAC	C0G NP0	0.26 in	0.2 in	Radial	5 %
KEMET C322C122KAG5TA7301	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	1200 pF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	10 %
KEMET C322C919DAG5TA7301	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	9.1 pF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	0.5 pF
KEMET C322C123KAG5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	0.012 µF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	10 %
KEMET C322C301GAG5TA7301	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	300 pF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	2 %
KEMET C322C393FAG5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	0.039 µF	0.2 in	0.125 in	250 V	C0G NP0	0.26 in	0.2 in	Radial	1 %
KEMET C322C221F3G5TA7301	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	220 pF	0.2 in	0.125 in	25 VAC	C0G NP0	0.26 in	0.2 in	Radial	1 %
KEMET C322C339B3G5TA	125 °C	-55 °C	Through Hole	General Purpose	Formed Leads	Low ESL	3.3 pF	0.2 in	0.125 in	25 VAC	C0G NP0	0.26 in	0.2 in	Radial	0.1 pF
