MMF404676
ActiveMicro-Measurements (Division of Vishay Precision Group)

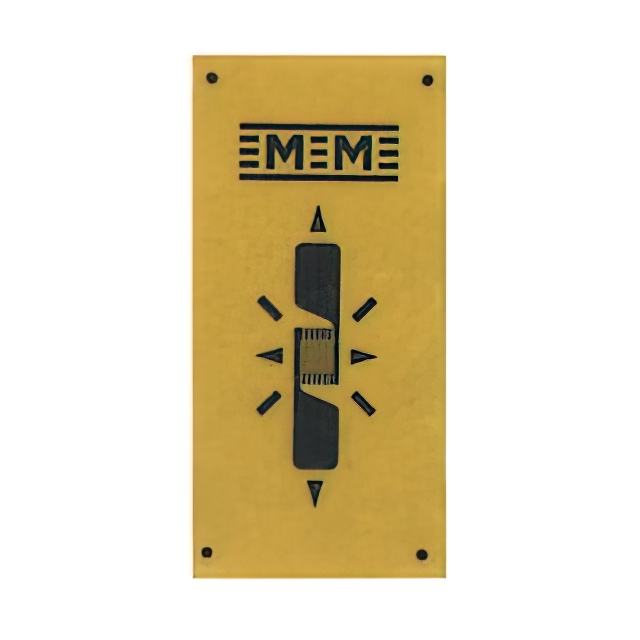

EA-13-015DJA-120 - STRAIN GAGES
MMF404676
ActiveMicro-Measurements (Division of Vishay Precision Group)
EA-13-015DJA-120 - STRAIN GAGES
Description
General part information
MMF404676
Linear Strain Gauge ±3% 0.015" (0.38mm) 0.020" (0.51mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404676 |
|---|---|
| Length - Active | 0.015 in |
| Length - Overall | 0.23 in |
| Length - Overall Pattern | 0.1 in |
| Length - Overall Pattern (mm) | 2.54 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Linear |
| Resistance | 120 Ohm |
| Resistance Tolerance (%) | 0.3 % |
| Strain Range | 3 % |
| Width - Active | 0.02 in |
| Width - Overall | 0.12 in |
| Width - Overall Pattern | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
