Description
General part information

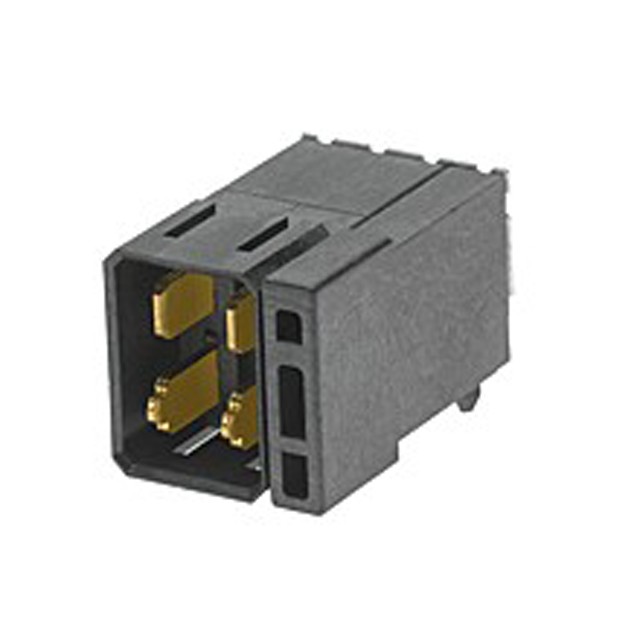

0783472003
IMPACT PWR 3PR RAHDR RHDN PF.76A
Technical Specifications
Parameters and characteristics for this part
| Specification | 0783472003 |
|---|---|
| Color | Black |
| Connector Style | Hold Down Right, Impact |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.205 in |
| Power Contacts (Typical) | 4 |
| Termination | Press-Fit |
