185334K63RHB-F
ActiveCornell Dubilier Knowles

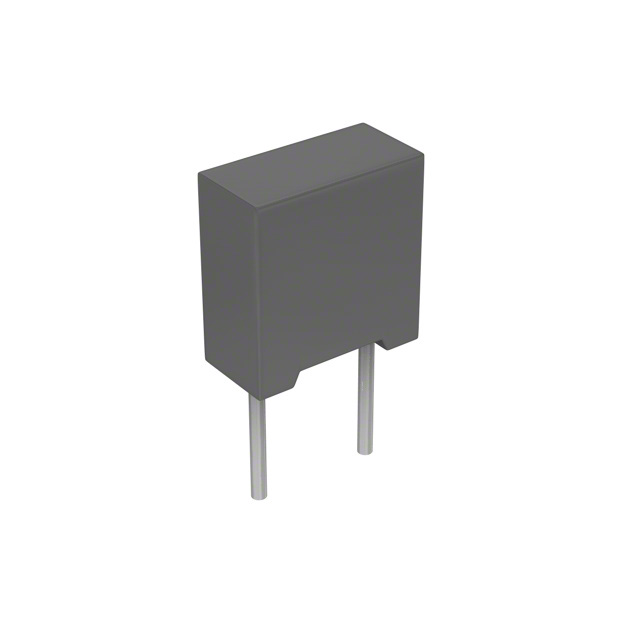

CAP FILM 0.33UF 10% 63VDC RADIAL
185334K63RHB-F
ActiveCornell Dubilier Knowles
CAP FILM 0.33UF 10% 63VDC RADIAL
Description
General part information
185334K63RHB-F
0.33 µF Film Capacitor 40V 63V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 185334K63RHB-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.33 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.295 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.138 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 40 V |
| Voltage Rating - DC | 63 V |
