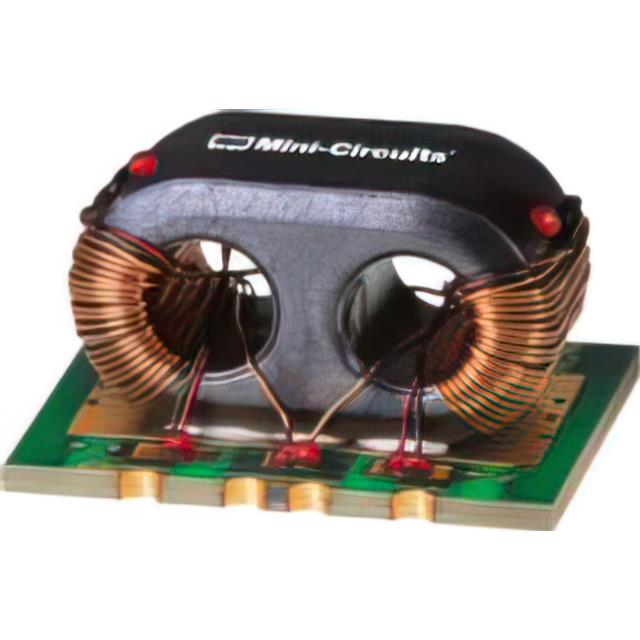

SYDC-20-31HP+
ActiveMini-Circuits
SMT BI-DIR COUP, 1.5 - 30 MHZ
SYDC-20-31HP+
ActiveMini-Circuits
SMT BI-DIR COUP, 1.5 - 30 MHZ
Description
General part information
SYDC-20-31HP+
RF Directional Coupler Military 1.5MHz ~ 30MHz 20.5 ± 0.05dB 50W 8-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SYDC-20-31HP+ |
|---|---|
| Applications | Military |
| Coupler Type | Standard |
| Coupling Factor | 20.5 dB |
| Coupling Factor Tolerance | 0.05 dB |
| Frequency (Max) | 30 MHz |
| Frequency (Min) | 1.5 MHz |
| Package / Case | 8-SMD Module |
| Package Name | 8-SMD |
| Power - Max | 50 VA |
| Return Loss | 25 dB |
