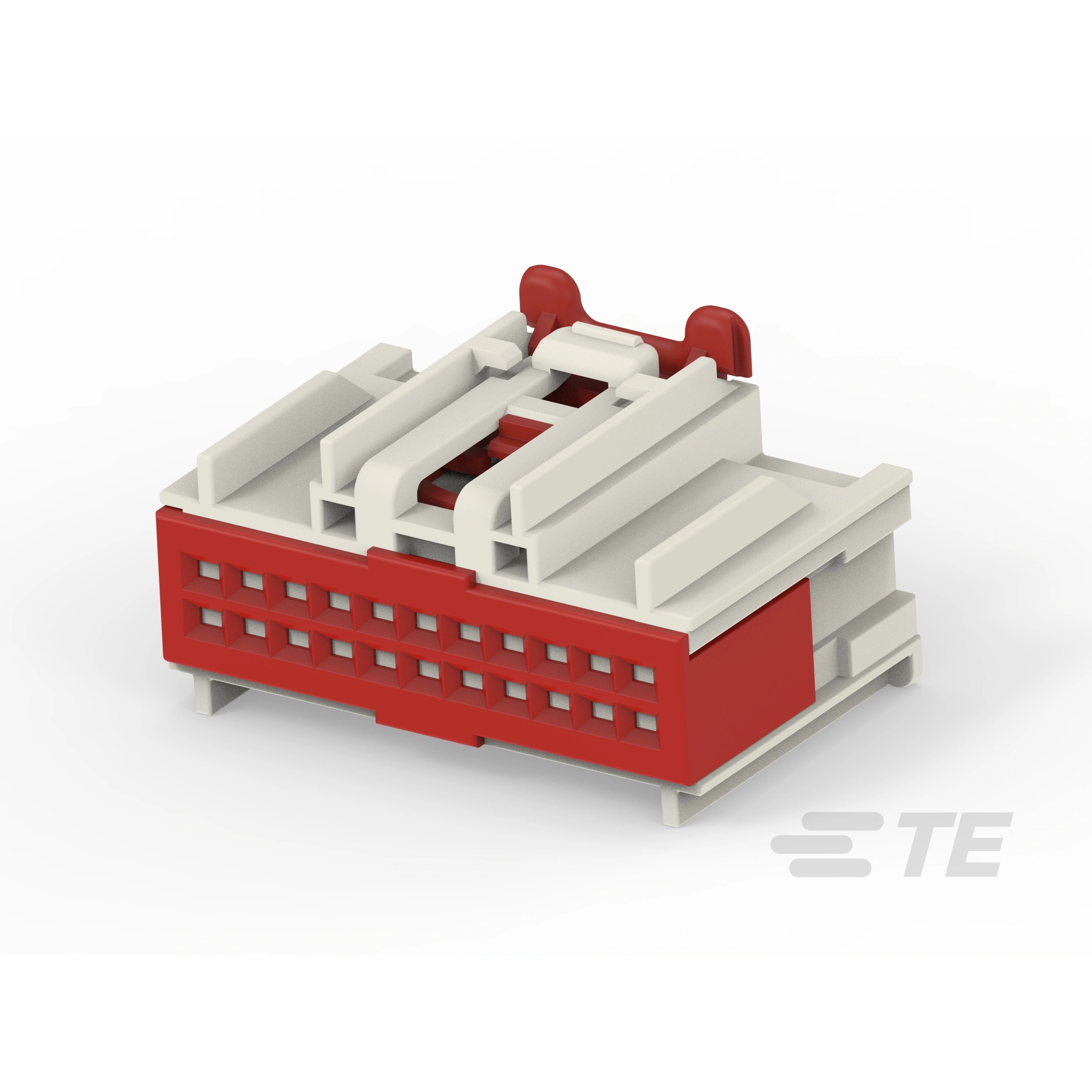

Specification	2-1419158-9

Color	Natural
Connector Type	Housing for Female Insert
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	22
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Row Spacing	0.1 in

Get .64 Connector System Series

Part	Note	Color	Insulation Material	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Termination	Contact Type	Number of Positions	Number of Rows	Pin or Socket	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish
TE Connectivity AMP Connectors 1-1419158-9	Contacts Not Included	Gray	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	100 °C	-40 °C	Receptacle	Crimp	Female Socket	23
TE Connectivity AMP Connectors 1419158-1	Contacts Not Included	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)			Receptacle	Crimp	Female Socket	6	1
TE Connectivity AMP Connectors 1419158-2	Contacts Not Included	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)			Receptacle	Crimp	Female Socket	6	1
TE Connectivity AMP Connectors 3-1419158-1								Crimp				Pin	31.5 µin	22 AWG	24 AWG	Gold
TE Connectivity AMP Connectors 1-1419158-0
TE Connectivity AMP Connectors 2-1419158-2	Contacts Not Included	Blue	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	100 °C	-40 °C	Receptacle	Crimp	Female Socket	23
