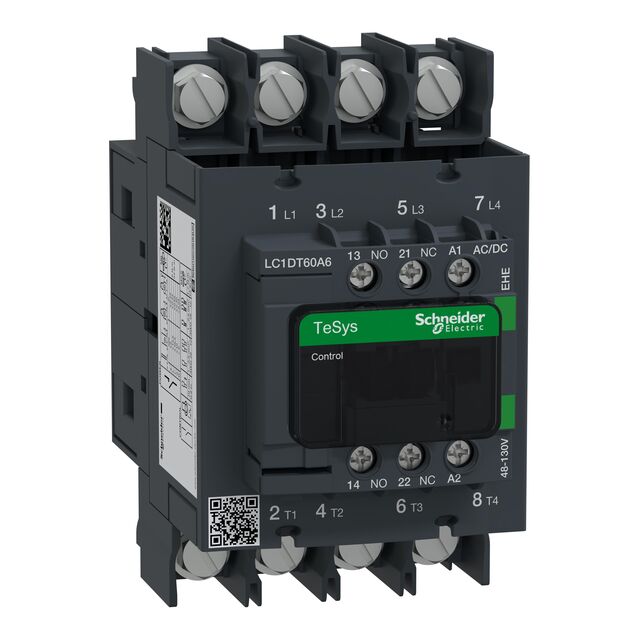

LC1DT60A6EHE
ActiveSCHNEIDER ELECTRIC
TESYSCTR4P60A AC3 NO+NC48-130V A
LC1DT60A6EHE
ActiveSCHNEIDER ELECTRIC
TESYSCTR4P60A AC3 NO+NC48-130V A
Description
General part information
LC1DT60A6EHE
TESYSCTR4P60A AC3 NO+NC48-130V A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT60A6EHE |
|---|---|
| Coil Voltage (Max) | 130 VAC/DC |
| Coil Voltage (Min) | 48 VDC |
| Coil Voltage (Type) | AC, DC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 60 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 65 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 80 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Box Lug |
