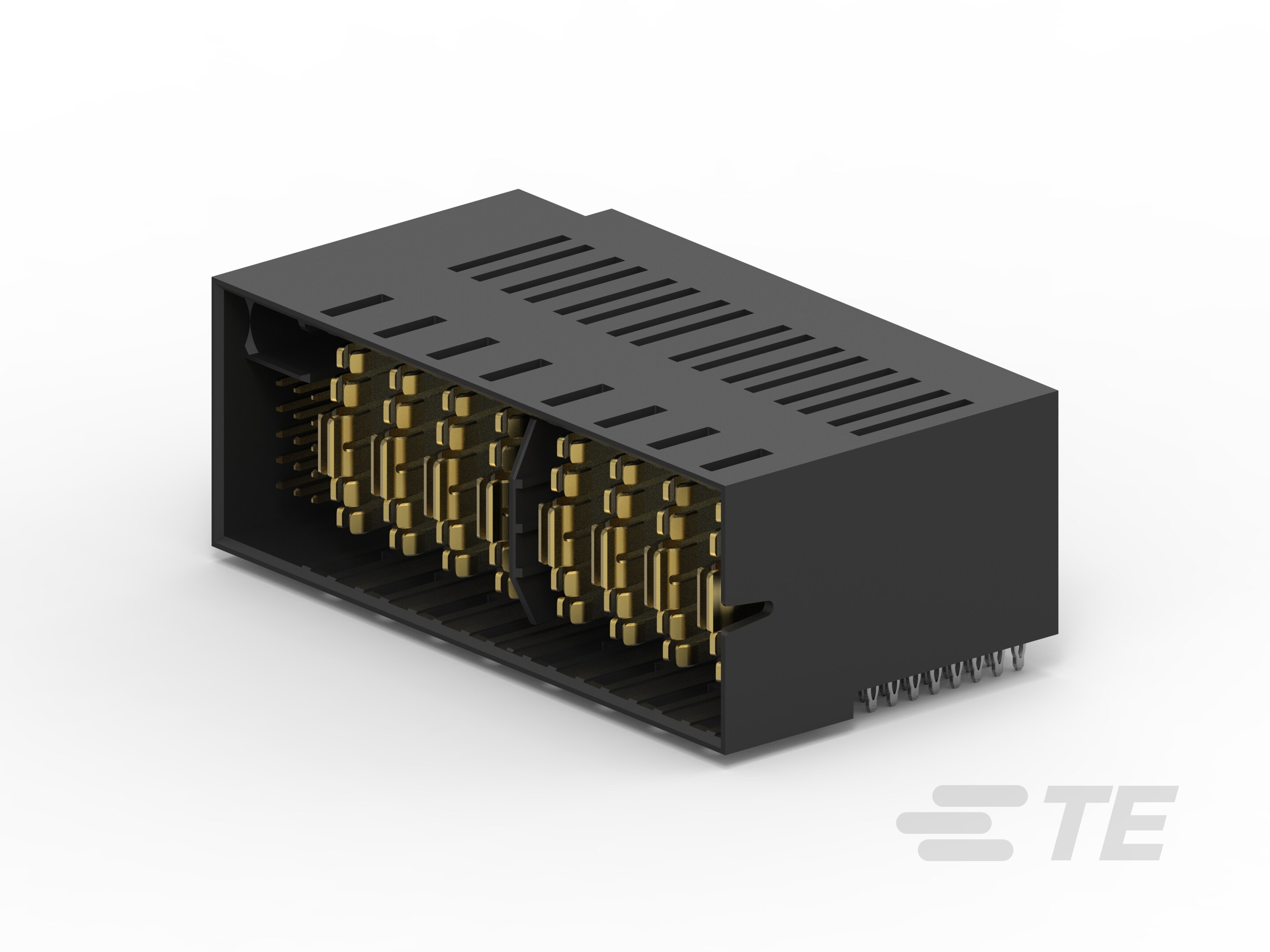

Specification	2204446-2

Color	Black
Connector Style	Multi-Beam
Connector Type	Blades, Male Pins, Header
Contact Finish	Gold-Palladium, Gold
Features	Board Guide
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	23
Number of Positions Loaded	All
Power Contacts (Typical)	8
Signal Contacts (Typical)	15
Termination	Press-Fit

MULTI-BEAM HD Series

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Color	Number of Positions	Mounting Type	Contact Finish	Connector Style	Number of Positions Loaded	Power Contacts (Typical)	Connector Type	Features	Signal Contacts (Typical)	Number of Columns	Pitch	Number of Rows	Current Rating	Contact Finish Thickness
TE Connectivity AMP Connectors 2204861-2
TE Connectivity AMP Connectors 2204423-1	UL94 V-0	125 °C	-40 °C	Press-Fit	Black	2	Through Hole	Gold Gold-Palladium	Multi-Beam	All	2	Female Blade Sockets Receptacle
TE Connectivity AMP Connectors 2204401-1				Press-Fit	Black	36	Right Angle Through Hole	Gold Gold-Palladium	Multi-Beam	All	6	Blade Sockets Female Sockets Receptacle	Guide Pin	30
TE Connectivity AMP Connectors 2204440-7				Press-Fit	Black	30	Board Edge Right Angle Through Hole	Gold Gold-Palladium	Multi-Beam	All	3	Blades Male Pins Plug	Board Guide	27
TE Connectivity AMP Connectors 2204400-4				Press-Fit	Black	36	Right Angle Through Hole	Gold	Multi-Beam	All	6	Blade Sockets Female Sockets Receptacle	Board Guide	30	12	0.197 in	5
TE Connectivity AMP Connectors 2204400-1				Press-Fit	Black	34	Right Angle Through Hole	Gold Gold-Palladium	Multi-Beam	All	4	Blade Sockets Female Sockets Receptacle	Board Guide	30
TE Connectivity AMP Connectors 2204420-2	UL94 V-0	125 °C	-40 °C	Press-Fit	Black	42	Through Hole	Gold Gold-Palladium	Multi-Beam	All	12	Blade Sockets Female Sockets Receptacle	Board Guide Guide Pin	30		0.079 in	5	1116 A	3 µin
TE Connectivity AMP Connectors 2204420-8				Press-Fit	Black	30	Through Hole	Gold Gold-Palladium	Multi-Beam	All	3	Blade Sockets Female Sockets Receptacle	Board Guide Guide Pin	27					3 µin
TE Connectivity AMP Connectors 2204445-1
TE Connectivity AMP Connectors 2204446-8				Solder	Black	24 pos	Board Edge Right Angle Through Hole	Gold Gold-Palladium	Multi-Beam	All	4	Blades Male Pins Plug	Board Guide	20			5
