Description

General part information

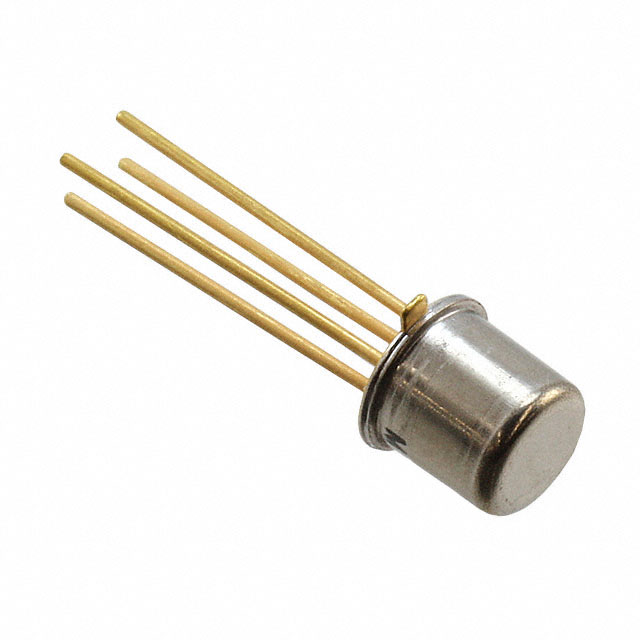

3C92CTX

Optoisolator Transistor Output 1000VDC 1 Channel TO-72-4

Technical Specifications

Parameters and characteristics for this part

Specification3C92CTX
Current - DC Forward (If) (Max)50 mA
Current - Output / Channel30 mA
Current Transfer Ratio (Max)200 %
Current Transfer Ratio (Min)30 %
Input TypeDC
Mounting TypeThrough Hole
Number of Channels1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Output TypeTransistor
Package / CaseTO-206AF, TO-72-4 Metal Can
Package NameTO-72-4
Turn Off Time (Max)6 µs
Turn On Time (Typ)9 µs
Vce Saturation (Max)400 mV
Voltage - Forward (Vf) (Max)1.2 V
Voltage - Isolation1000 Vrms
Voltage - Output (Max)50 V
