CX2520DB20000D0GPSC1
ObsoleteKYOCERA AVX

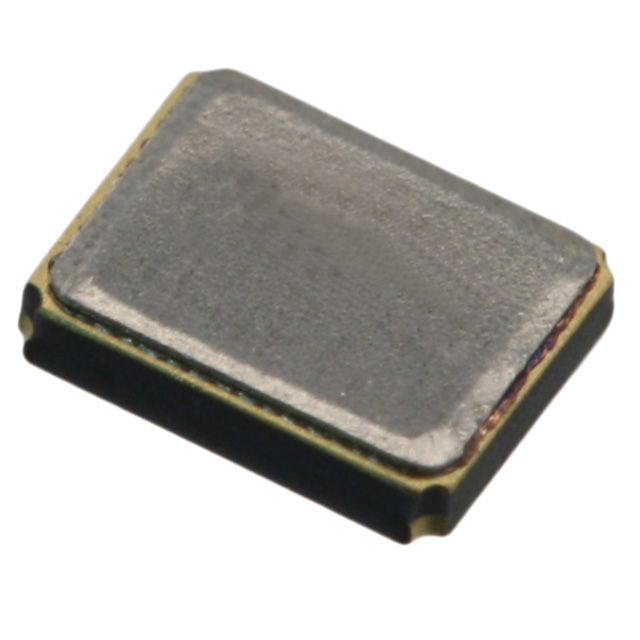

CRYSTAL 20.0000MHZ 8PF SMD
CX2520DB20000D0GPSC1
ObsoleteKYOCERA AVX
CRYSTAL 20.0000MHZ 8PF SMD
Description
General part information
CX2520DB20000D0GPSC1
20 MHz ±15ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CX2520DB20000D0GPSC1 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 20 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) | 0.022 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | MHz Crystal |
