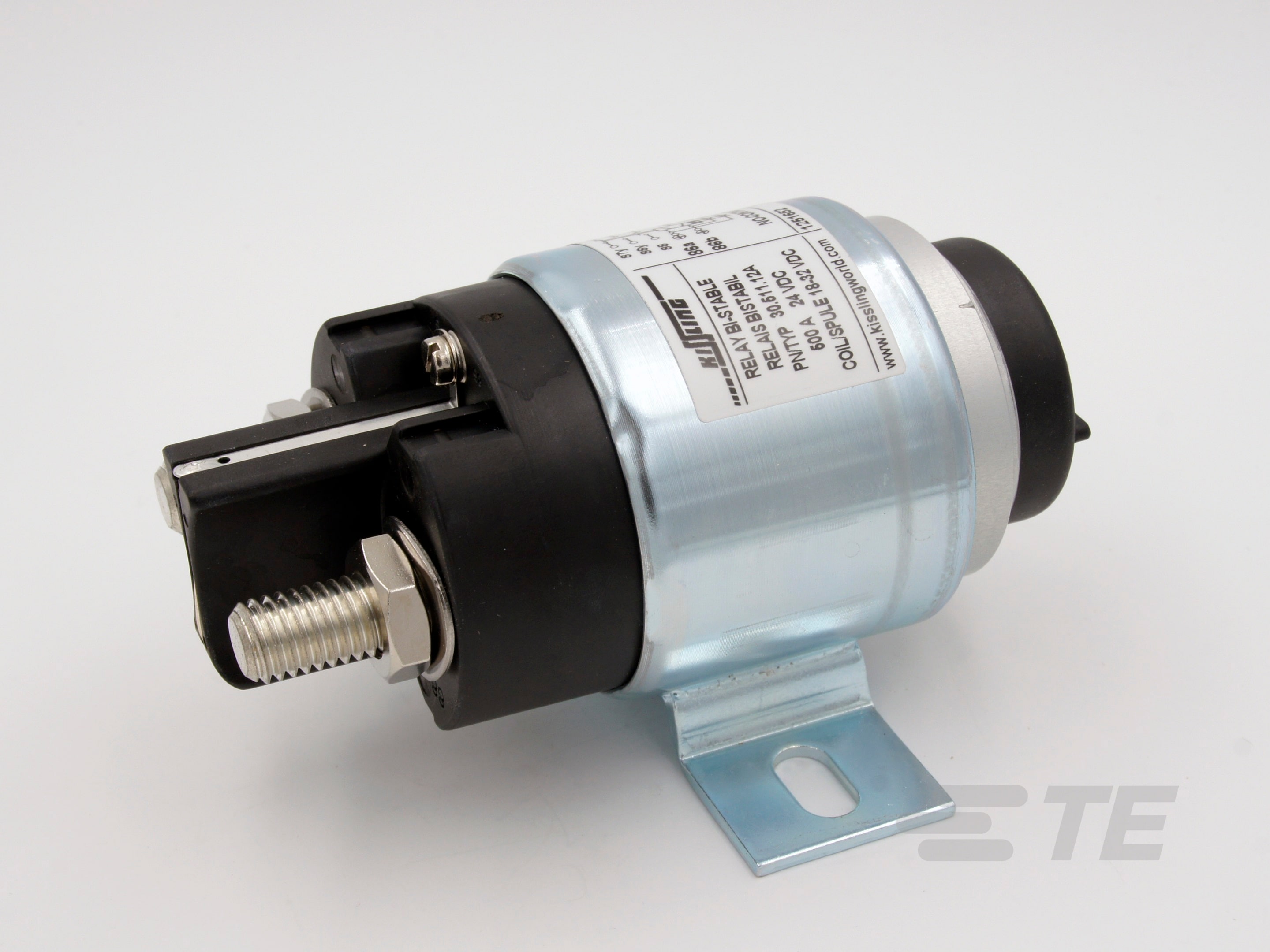

Specification	30-511-11A

Coil Type	Dual Coil, Latching
Coil Voltage	12 VAC
Contact Form	Form, X, 1, SPST-NO, DM
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	500 A
Features	Diode
Mounting Type	Chassis Mount
Must Operate Voltage	9 VDC
Must Release Voltage	7 VDC
Operate Time	25 ms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Termination Style	Screw Terminal

KISSLING Series 30 Series

Part	Relay Type	Release Time	Coil Type	Termination Style	Contact Material	Must Release Voltage	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Contact Form	Mounting Type	Features	Operate Time	Coil Voltage
TE Connectivity AMP Connectors 30-513-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	500 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	25 ms	28 VDC
TE Connectivity AMP Connectors 30-511-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	500 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	25 ms	28 VDC
TE Connectivity AMP Connectors 30-213-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	200 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	28 VDC
TE Connectivity AMP Connectors 30-314-11A	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	7 VDC	300 A	-40 °C	85 °C	9 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	12 VAC
TE Connectivity AMP Connectors 30-313-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	300 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	28 VDC
TE Connectivity AMP Connectors 30-311-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	300 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	24 VDC
TE Connectivity AMP Connectors 30-211-12	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	200 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	28 VDC
TE Connectivity AMP Connectors 30-311-12A	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	300 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	28 VDC
TE Connectivity AMP Connectors 30-511-12A	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	10 VDC	500 A	-40 °C	85 °C	13 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	25 ms	28 VDC
TE Connectivity AMP Connectors 30-213-11	General Purpose	10 ms	Dual Coil Latching	Screw Terminal	Silver Tin Oxide (AgSnO)	7 VDC	200 A	-40 °C	85 °C	9 VDC	1 DM Form SPST-NO X	Chassis Mount	Diode	15 ms	12 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

KISSLING SINGLE POLE BI-STABLE RELAYS Series 30 / 500A

Datasheet

30-511-11A | Datasheet
