3-137-085
ObsoleteSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
3-137-085
ObsoleteSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Description
General part information
3-137-085

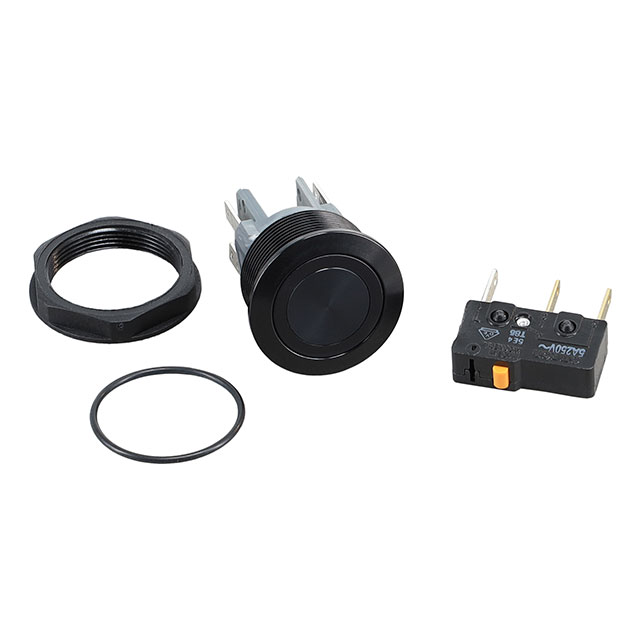

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-137-085 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPDT |
| Color | Blue, Red, Green |
| Color - Actuator/Cap | Silver |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 200000 |
| Illumination Type | LED |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 1500000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Type | Illuminated, Anti-Vandal |
| Voltage Rating - AC | 125 V |
