BA400R
ActivePasternack
ADAPTOR RCA F-F 75 OHM RED
BA400R
ActivePasternack
ADAPTOR RCA F-F 75 OHM RED
Description
General part information
BA400R

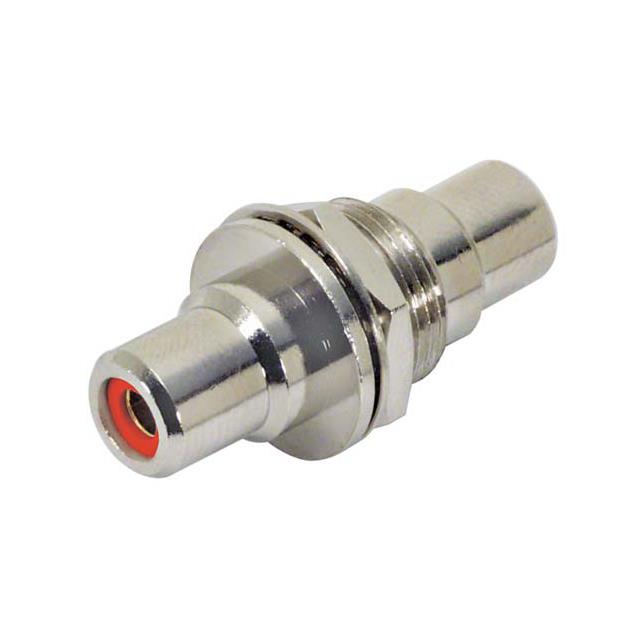

Adapter Connector Phono (RCA) Jack To Phono (RCA) Jack Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BA400R |
|---|---|
| Actual Diameter (ID) | 0.126 in |
| Actual Diameter (OD) | 0.327 in |
| Body Finish | Nickel |
| Body Material | Brass |
| Connector Style | Audio Adapter |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Phono (RCA) Jack |
| Convert To (Adapter End) | Phono (RCA) Jack |
| Gender | Female to Female |
| Housing Color | Silver |
| Insulation Color | Red |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Conductors | 2 Conductors |
| Shielding | Unshielded |
