6772212322F

Active

DIALIGHT

7MM HG/G PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HG/G PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6772212322F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Green
Millicandela Rating	4135 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	6 V

7MM HG/G PMI-6VDC W/O-RING

Part	Current	Ratings	Type	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Shape	Lamp Color	Voltage	Ingress Protection	Termination Style	Millicandela Rating
DIALIGHT 6772212322F	30 mA	DC	LED	7.11 mm	0.28 "	Round	Green	6 V	IP66, NEMA 4X	Solder Lug	4135 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

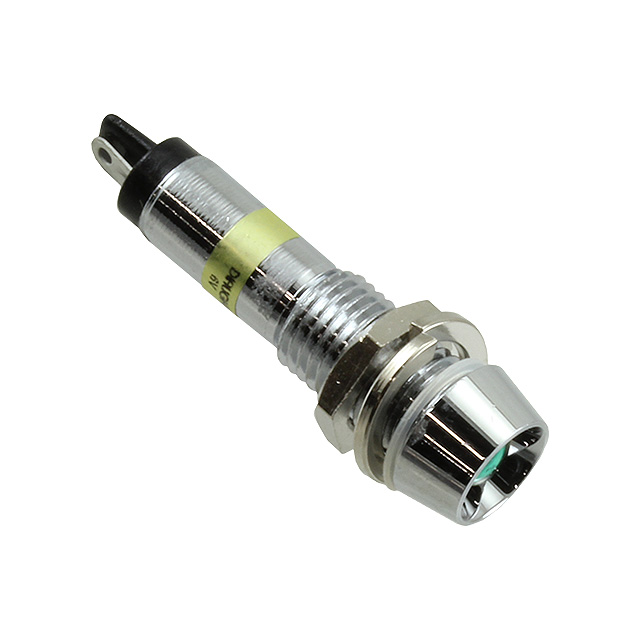

LED Panel Indicator Green 6V 30mA Solder Lug
