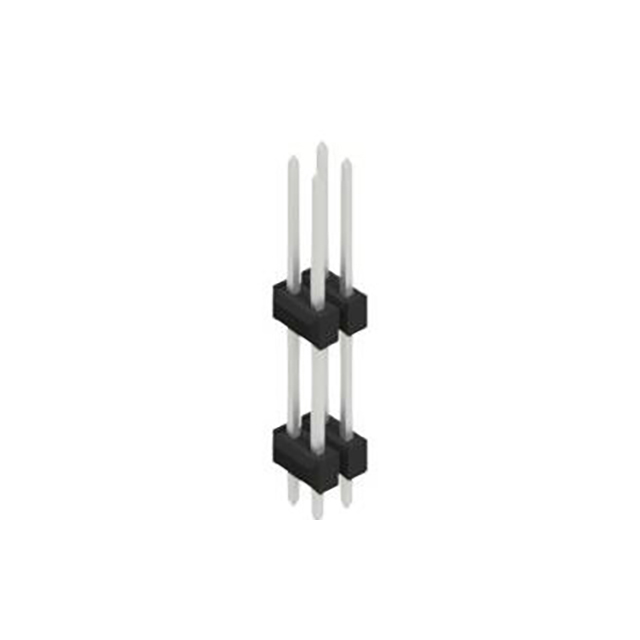

SL 14 147 4 Z
ActiveFischer Elektronik
0.635 MM, SANDWICH
SL 14 147 4 Z
ActiveFischer Elektronik
0.635 MM, SANDWICH
Description
General part information
SL 14 147 4 Z
Connector Header Through Hole 4 position 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SL 14 147 4 Z |
|---|---|
| Color | Black |
| Contact Finish - Mating | Tin |
| Contact Finish - Post (Mating) | Tin |
| Contact Finish Thickness - Post (Mating) | 157.5 µin |
| Contact Material | Copper Tin |
| Length - Overall Pin | 1.142 in |
| Length - Post (Mating) | 0.433 in |
| Length - Tail | 0.13 in |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Pitch - Mating | 0.1 in |
| Row Spacing | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
