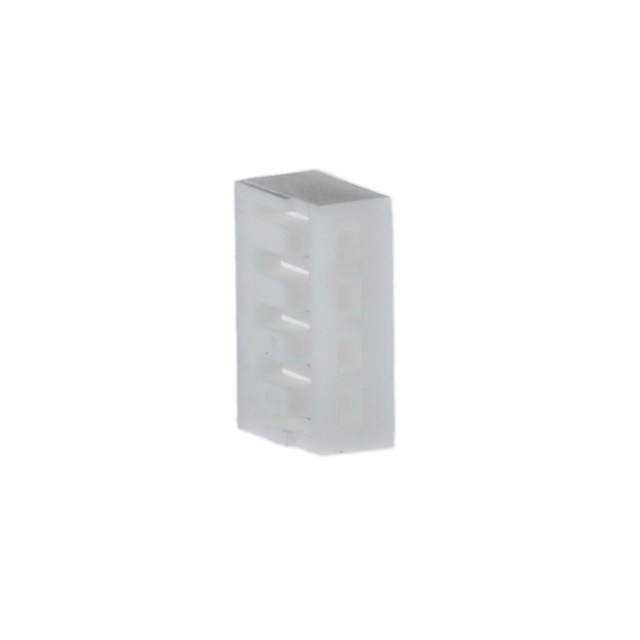

10156614-0400LF

Active

Amphenol ICC (FCI)

CONN BOARD-IN HSG 4POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet minitek productpresentation Other Related Document +1

10156614-0400LF

Active

Amphenol ICC (FCI)

CONN BOARD-IN HSG 4POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet minitek productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10156614-0400LF

Color	Natural
Connector Type	Board-In
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Through Hole
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

10156614 Series

Part	Note	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Contact Type	Number of Positions	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Color	Number of Positions
Amphenol ICC (FCI) 10156614-0900LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	9	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-0400LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	4	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-1200LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	12	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-1000LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	10	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-1100LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	11	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-0500LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin		Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-0800LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	8	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-1600LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin		Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural	16
Amphenol ICC (FCI) 10156614-1500LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	15	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural
Amphenol ICC (FCI) 10156614-0600LF	Contacts Not Included	1	-40 °C	105 ░C	Crimp	Through Hole	Male Pin	6	Board-In	Polyamide (PA66) Nylon 6/6	0.079 in	2 mm	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10156614 Series

4 Rectangular Connectors - Housings Board-In Natural 0.079" (2.00mm)
