35HDSAU12

Active

Switchcraft Inc.

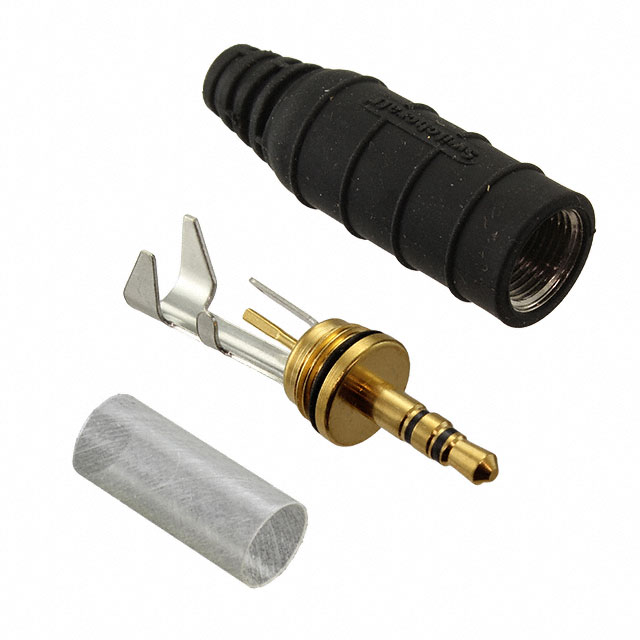

PHONE CONNECTORS 3.5MM SLD STEREO PLG .12 GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35HDSAU12

Active

Switchcraft Inc.

PHONE CONNECTORS 3.5MM SLD STEREO PLG .12 GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDSAU12	35HDSA Series

Actual Diameter [diameter]	3.56 mm	3.56 mm
Actual Diameter [diameter]	0.14 in	0.14 in
Body Color	Gold, Black	Gold, Black
Body Material	Copper Alloy	Copper Alloy
Cable Opening	-	4.45 mm
Cable Opening	-	0.21 in
Cable Opening	-	5.33 mm
Cable Opening	-	0.175 in
Cable Opening	-	0.15 - 0.175 in
Cable Opening	-	3.81 - 4.45 mm
Cable Opening [diameter]	3.18 mm	3.18 mm
Cable Opening [diameter]	0.125 in, 0.15 in	0.125 - 0.15 in
Cable Opening [diameter]	3.81 mm	3.81 mm
Connector Type	Phone Plug	Phone Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	4 A	4 A
Features	Sealed, Strain Relief	Sealed, Strain Relief
Gender	Male	Male
Housing Material	Copper Alloy	Copper Alloy
Includes	1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector	1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	False	False
Mating Length/Depth	14.2 mm	14.2 mm
Mating Length/Depth	0.56 in	0.56 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

35HDSA Series

Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Body Color	Mating Length/Depth	Mating Length/Depth	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Signal Lines	Body Material	Gender	Includes	Termination	Contact Material	Mounting Type	Housing Material	Features	Current Rating (Amps)	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. 35HDSAU17	3	3	3.56 mm	0.14 in	Gold	Black, Gold	14.2 mm	0.56 in	4.45 mm	0.21 in	5.33 mm	0.175 in	Unshielded	85 °C	-20 C	Phone Plug	Stereo	Copper Alloy	Male	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Free Hanging (In-Line)	Copper Alloy	Sealed, Strain Relief	4 A	0.141 "	0.125 "	3.5 mm
Switchcraft Inc. 35HDSAU12	3	3	3.56 mm	0.14 in	Gold	Black, Gold	14.2 mm	0.56 in					Unshielded	85 °C	-20 C	Phone Plug	Stereo	Copper Alloy	Male	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Free Hanging (In-Line)	Copper Alloy	Sealed, Strain Relief	4 A	0.141 "	0.125 "	3.5 mm	3.18 mm	0.125 in, 0.15 in	3.81 mm
Switchcraft Inc. 35HDSAU15	3	3	3.56 mm	0.14 in	Gold	Black, Gold	14.2 mm	0.56 in					Unshielded	85 °C	-20 C	Phone Plug	Stereo	Copper Alloy	Male	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	Solder Eyelet(s)	Copper Alloy	Free Hanging (In-Line)	Copper Alloy	Sealed, Strain Relief	4 A	0.141 "	0.125 "	3.5 mm				0.15 in, 0.175 in	3.81 mm, 4.45 mm
