13182-7PG-321
ActiveConxall/Switchcraft

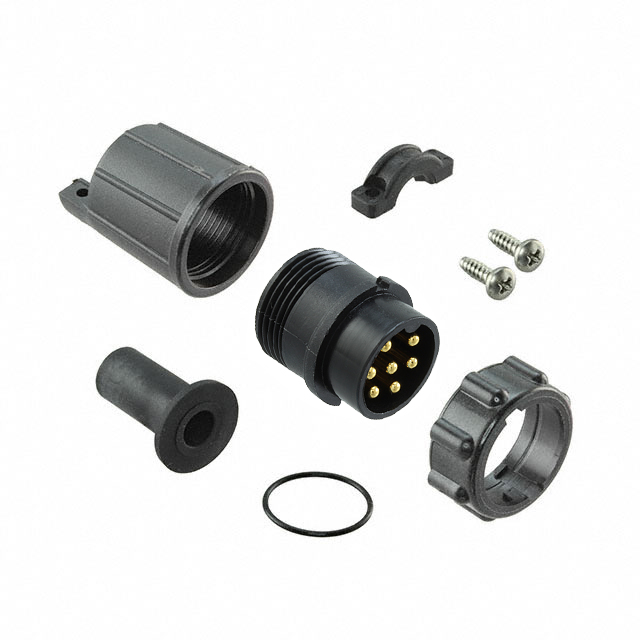

CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
13182-7PG-321
ActiveConxall/Switchcraft
CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 13182-7PG-321 | 13182-7P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.26 in |
| Cable Opening | - | 7.62 mm |
| Cable Opening | - | 0.3 in |
| Cable Opening | - | 6.6 mm |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.31 - 0.38 in |
| Cable Opening | - | 7.87 mm |
| Cable Opening [Max] [custom] | 6.35 mm | 6.35 mm |
| Cable Opening [Max] [custom] | 0.25 in | 0.25 in |
| Cable Opening [Min] [custom] | 0.21 in | 0.21 in |
| Cable Opening [Min] [custom] | 5.33 mm | 5.33 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
13182-7P Series
CONN PLUG MALE 7P GOLD SLDR CUP
| Part | Backshell Material, Plating | Shielding | Fastening Type | Color | Mounting Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Ingress Protection | Connector Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Orientation | Contact Material | Voltage Rating | Features | Contact Finish - Mating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 13182-7PG-326 | Nylon, Polyamide (PA) | Unshielded | Bayonet Lock | Black | Free Hanging (In-Line) | Plastic | -40 °C | 115 °C | 7 | Weathertight | Male Pins, Plug | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm | Keyed | Brass | 600 V | Backshell, Cable Clamp | Gold | |||||||
Conxall/Switchcraft 13182-7PG-321 | Nylon, Polyamide (PA) | Unshielded | Bayonet Lock | Black | Free Hanging (In-Line) | Plastic | -40 °C | 115 °C | 7 | Weathertight | Male Pins, Plug | Keyed | Brass | 600 V | Backshell, Cable Clamp | Gold | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in | |||||||
Conxall/Switchcraft 13182-7PG-331 | Nylon, Polyamide (PA) | Unshielded | Bayonet Lock | Black | Free Hanging (In-Line) | Plastic | -40 °C | 115 °C | 7 | Weathertight | Male Pins, Plug | Keyed | Brass | 600 V | Backshell, Cable Clamp | Gold | 9.65 mm | 0.31 in, 0.38 in | 7.87 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.03 | |
| 10 | $ 17.54 | |||
| 100 | $ 15.70 | |||
Description
General part information
13182-7P Series
7 Position Circular Connector Plug, Male Pins Solder Cup
