FMC0813316-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-SMAJACK 36
FMC0813316-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-SMAJACK 36
Description
General part information
FMC0813316-36

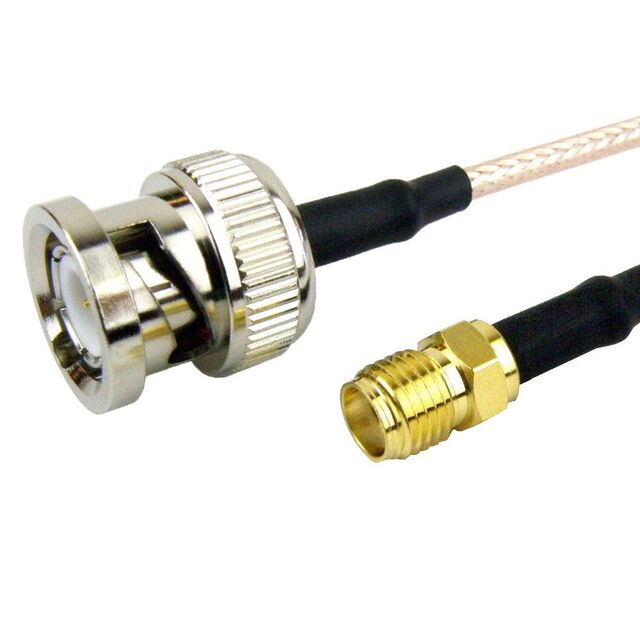

Cable Assembly Coaxial BNC to SMA RG-316 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0813316-36 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 2 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
