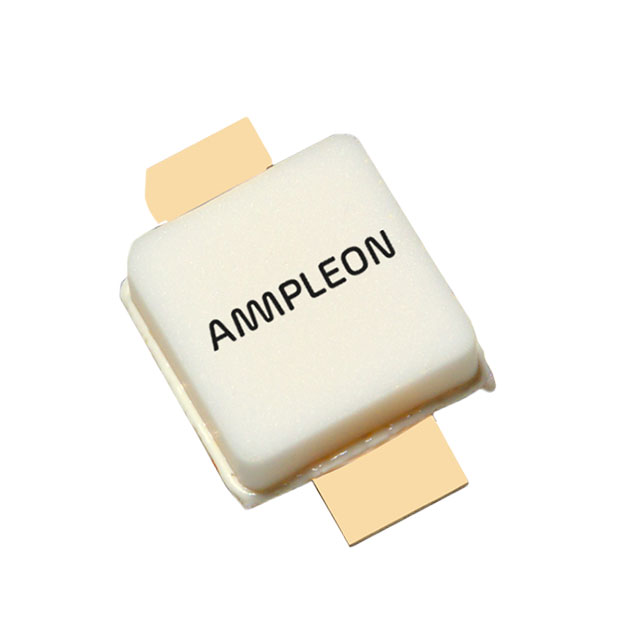

BLF6G38-10,118
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V CDFM2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF6G38-10,118
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V CDFM2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLF6G38-10,118 | BLF6G38 Series |
|---|---|---|
| Current - Test | 130 mA | 1.05 - 450 mA |
| Current Rating (Amps) | 3.1 A | 3.1 - 34 A |
| Frequency [Max] | 3.6 GHz | 3.6 GHz |
| Frequency [Min] | 3.4 GHz | 3.4 GHz |
| Gain | 14 dBi | 13 - 15 dBi |
| Mounting Type | Chassis Mount | Surface Mount, Chassis Mount |
| Package / Case | SOT-975B | SOT-975C, SOT-975B, SOT-502A, SOT-502B, SOT-608B |
| Power - Output | 2 W | 2 - 18.5 W |
| Supplier Device Package | CDFM2 | CDFM2, SOT502A, SOT502B |
| Voltage - Rated | 65 V | 65 V |
| Voltage - Test | 28 V | 28 V |
BLF6G38 Series
RF MOSFET LDMOS 28V CDFM2
| Part | Package / Case | Current Rating (Amps) | Current - Test | Gain | Voltage - Test | Frequency [Min] | Frequency [Max] | Mounting Type | Power - Output | Voltage - Rated | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLF6G38-10G,118 | SOT-975C | 3.1 A | 130 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Surface Mount | 2 W | 65 V | CDFM2 |
Ampleon USA Inc. BLF6G38-10,118 | SOT-975B | 3.1 A | 130 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 2 W | 65 V | CDFM2 |
Ampleon USA Inc. BLF6G38-50,135 | SOT-502A | 16.5 A | 450 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 9 W | 65 V | SOT502A |
Ampleon USA Inc. BLF6G38LS-50,112 | SOT-502B | 16.5 A | 450 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 9 W | 65 V | SOT502B |
Ampleon USA Inc. BLF6G38-50,112 | SOT-502A | 16.5 A | 450 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 9 W | 65 V | SOT502A |
Ampleon USA Inc. BLF6G38S-25,118 | SOT-608B | 225 mA | 15 dB | 28 V | 3.4 GHz | 3.6 GHz | 4.5 W | 65 V | CDFM2 | ||
Ampleon USA Inc. BLF6G38-100,112 | SOT-502A | 34 A | 1.05 A | 13 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 18.5 W | 65 V | SOT502A |
Ampleon USA Inc. BLF6G38-10G,112 | SOT-975C | 3.1 A | 130 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Surface Mount | 2 W | 65 V | CDFM2 |
Ampleon USA Inc. BLF6G38LS-100,112 | SOT-502B | 34 A | 1.05 A | 13 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 18.5 W | 65 V | SOT502B |
Ampleon USA Inc. BLF6G38-10,112 | SOT-975B | 3.1 A | 130 mA | 14 dBi | 28 V | 3.4 GHz | 3.6 GHz | Chassis Mount | 2 W | 65 V | CDFM2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF6G38 Series
RF Mosfet 28 V 130 mA 3.4GHz ~ 3.6GHz 14dB 2W CDFM2
